History
Construction and defensive purpose
Fort de Barchon is a Belgian fort northeast of Liège, built in the late nineteenth century as part of the Fortified Position of Liège. This ring of twelve forts formed part of Belgium’s National Redoubt, the country’s strategic network of fortified positions intended to provide a defensible military center. The forts were constructed according to plans by General Henri Alexis Brialmont, a Belgian military engineer and army officer whose standardized designs shaped Liège’s defensive ring.
Barchon’s main tactical purpose was to prevent an enemy moving upstream along the Meuse from reaching Liège. Its position above the river gave it a role in controlling approaches from the east, while its guns and protected defensive works were intended to support the wider fortified position.
First World War
German forces first attacked Barchon on 5 August 1914, during the opening of the First World War. The following day, troops attempting to pass between the fort and the Meuse were forced to retreat. The Liège forts resisted more strongly than the German command had expected, leading Germany to deploy heavy siege artillery against them.
Barchon came under intense bombardment from 8 August, including fire from 21 cm guns. After the garrison rejected a surrender demand delivered under a flag of truce, the shelling resumed. Much of the fort’s armament was damaged, and the interior became unbreathable. Barchon surrendered at about 16:00 on 8 August, becoming the first of the Liège forts to capitulate. Twenty-two members of its garrison were killed.
German forces altered the fort in 1915. They modified the entrance, added concrete protection and metal decking beneath concrete ceilings, installed forced ventilation, and moved the latrines, kitchens, and bakery into the main fort. These changes responded to the effects of modern artillery and to the unhealthy conditions created by bombardment and confined firing spaces.
Interwar modernization
During the 1930s, Barchon was incorporated into the Fortified Position of Liège II, the interwar modernization of Liège’s defensive system against a possible German attack. The work improved the fort’s weapons, protection, ventilation, sanitation, communications, and electrical systems. New barracks were built for peacetime accommodation, and a carrier-pigeon loft formed part of the modernized installation.
The modernization also exposed the limits of the original design. Barchon had been intended to withstand shellfire from weapons up to 21 cm in calibre, yet the 21 cm bombardment of 1914 had damaged the fort. The new arrangements therefore included stronger protection and longer-range artillery, together with systems designed to reduce the danger from gas and improve the garrison’s ability to operate underground.
Second World War and preservation
At the beginning of the German invasion in May 1940, Barchon provided artillery support for Fort Eben-Emael and later for Fort Aubin-Neufchâteau, both Belgian forts in the country’s eastern defensive system. Its anti-aircraft battery shot down a German aircraft. Belgian field forces withdrew on 11 May, leaving the Liège forts to continue fighting independently.
German infantry attacked Barchon on 12 May, followed by heavy artillery bombardment on 13 May. One 75 mm gun exploded after being overcharged. Shelling and infantry attacks continued until an air attack on 17 May and further fighting on 18 May, when a 105 mm turret was disabled. After the garrison rejected a German surrender demand, artillery and aerial bombardment resumed. A German infantry assault supported by flamethrowers captured the fort at 18:00 on 18 May. The garrison suffered four deaths and twenty-two wounded.
Fort de Barchon is preserved by a conservation organization and used as a museum. Conversion and restoration for museum use have retained the prominent air-intake tower, defensive works, underground passages, and other surviving infrastructure.
Remains
The fort occupies a hill above the right bank of the Meuse, northeast of Liège. Its plan is an isosceles triangle, with a base of about 300 metres and sides measuring about 235 metres. The grounds cover approximately 13 hectares, and a dry ditch surrounds the position. Barchon was constructed entirely from unreinforced concrete. The central block had about four metres of concrete cover, while the less exposed barracks walls were approximately 1.5 metres thick.
Central fort and ditch defenses
Central massif
The principal armament was concentrated in the central massif, the heavily protected central block containing the main guns and essential spaces. The original long-range weapons included two rotating Grüsonwerke turrets, each carrying a single 21 cm gun, one 15 cm Creusot turret with two guns, and two Châtillon-Commentry turrets, each carrying two 12 cm guns. The heavy guns were generally German-made, often by Krupp, while the turret mechanisms came from several manufacturers.
During the 1930s, the two 21 cm turrets were replaced by longer-range 15 cm turrets. The original 15 cm turret was replaced by a turret carrying machine guns and grenade launchers, while the 12 cm turrets were replaced by turrets mounting paired 105 mm guns. The modernization added paired 120 mm mortars, five 75 mm turrets, and a machine-gun anti-aircraft battery.
Ditch and rear defenses
The fort’s dry ditch was defended by guns firing along its length from enclosed casemates, or fortified gun positions protected by thick walls and overhead cover. These positions were placed near the outer defensive side of the ditch and fired toward shot traps at the opposite end. Four retractable 57 mm Grüsonwerke turrets, nine rapid-fire 57 mm guns in casemates, and two mobile guns supported local defense of the ditches and the concealed postern, a small passage or gate used for movement and close defense.
The rear of the fort was deliberately weaker than its projecting sides so that Belgian forces could potentially recapture it. Barracks and support facilities opened toward the rear ditch, which supplied light and ventilation but became untenable during heavy shellfire. Signal lights connected Barchon with the neighboring forts of Loncin and Liers. An observation turret with a searchlight also formed part of the original installation.
Ventilation and support infrastructure
Air-intake tower

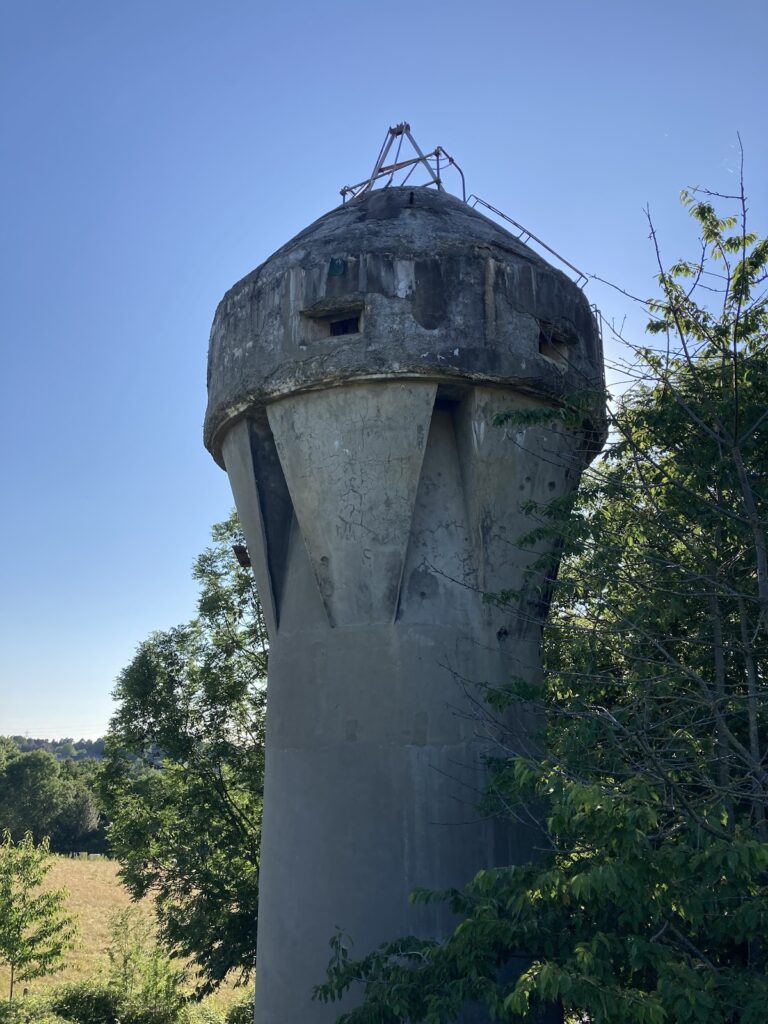

A fortified air-intake tower was built several hundred metres outside the main fort. About 20 metres high, it was connected to Barchon by an underground passage and drew fresh air from a higher level. Its purpose was to reduce the danger of poison gas entering the underground complex. The tower remains one of the most prominent preserved elements of the fort’s defensive infrastructure.
Underground passages and service spaces
The surviving complex includes underground passages, air shafts, cisterns, and the internal defensive works. The fort’s weapons originally used black powder rather than smokeless powder, producing choking gases that spread through the confined firing spaces. Forced ventilation was added during the German alterations of 1915 and further improved during the 1930s modernization, alongside better sanitary facilities and electrical power.
New barracks provided peacetime accommodation after the interwar rebuilding, while kitchens, latrines, and the bakery occupied the main fort after their relocation in 1915. The preserved passages and service installations help convey how the garrison operated within the concrete fortification and how later alterations changed its internal organization.
