History
The Gallo-Roman aqueduct of Luynes is a Roman-period bridge aqueduct at Luynes in France, built within the Gallo-Roman culture of ancient Gaul. Recent studies place the construction of its monumental form around AD 150, although its exact date has not been established. Despite its modest dimensions, it is among the best-preserved ancient aqueducts in northwestern France and is regarded as the most famous Roman monument in the department of Indre-et-Loire.
Construction and earlier phases
The aqueduct was not created in one consistent building campaign. Differences in the masonry and pier design point to several construction or repair phases, and the monumental bridge may have replaced one or more earlier structures. A continuous wall incorporated into the surviving remains could belong to an earlier aqueduct. Paired masonry masses beside parts of this wall may represent a further construction phase, although their relationship is not certain.
Earlier interpretations placed the aqueduct before the fourth century, in the second or third century, or even in the Carolingian period. The proposed date around AD 150 therefore remains a working interpretation rather than an absolute foundation date. Its water source or sources are also uncertain. The Pie Noire, also called Pinnoire, was probably the main source, while the nearby Claire-Fontaine spring may have supplied additional water. Other springs may have contributed as well.
Water supply and ancient Luynes
The aqueduct may have served Malliacum, the ancient settlement associated with Luynes, or a substantial rural complex in the surrounding Loire valley. Its final destination has not been established. Suggested destinations include the Saint-Venant complex, the bathhouse at Clos de Sainte-Roselle, and private villas. These possibilities reflect the difficulty of reconstructing the underground route and the changing uses of the water over the aqueduct’s long history.
The ancient remains around Luynes extend along a strip more than one kilometre long and about 200 metres wide on the right bank of the Loire valley. They may represent a secondary settlement or a large rural estate with monumental buildings. An ancient route across the area linked Tours and Angers along a Gallic ridge. A later road at the foot of the slope may have supplemented or replaced it, although the surviving archaeological traces of both routes are limited.
Eighteenth-century historians, including Felix Le Royer de La Sauvagere, once incorrectly identified the Luynes area with Caesarodunum, the Roman-period predecessor of Tours. Discoveries at Tours later disproved that interpretation. The Saint-Venant ruins were also formerly understood as a Late Roman fortlet, or castellum, a small fortified structure that may have controlled the Loire valley. Reassessment in 2002 questioned that reading, while still placing the remains on an artificial terrace above the valley and recognizing successive additions to earlier masonry.
Use, repair, and modern study
The bridge aqueduct appears to have remained in service until the twelfth or thirteenth century. A diploma issued by Charles III the Simple, a West Frankish king who ruled from 898 to 922, records repairs in 919. The long period of use probably involved changes in the destination or function of the water, although the successive arrangements cannot be reconstructed fully.
The monument’s condition declined over time. Of roughly 90 original piers, 62 were counted in 1767, 53 in 1882, and 44 in 2015. Only six arches were recorded from the nineteenth century through the early 1930s. Two more arches were rebuilt after the Second World War, probably during a restoration campaign. Several piers have also been repaired, but the structure continues to experience stone loss and slight eastward leaning in several places.
Detailed study by Michel Laurencin in 1966 was followed by aerial surveys led by Jacques Dubois. Those surveys revealed the Clos de Sainte-Roselle complex in 1976 and suggested part of the underground route in 1993. Work by Patrick Bordeaux and Jacques Seigne in 2002, followed by preventive excavation by Jean-Philippe Chimier and Patrick Neury in 2003, clarified the importance of the continuous wall and refined the classification of the surviving piers. The municipality of Luynes owns the aqueduct, which has been protected as a French historic monument since 1862.
Remains

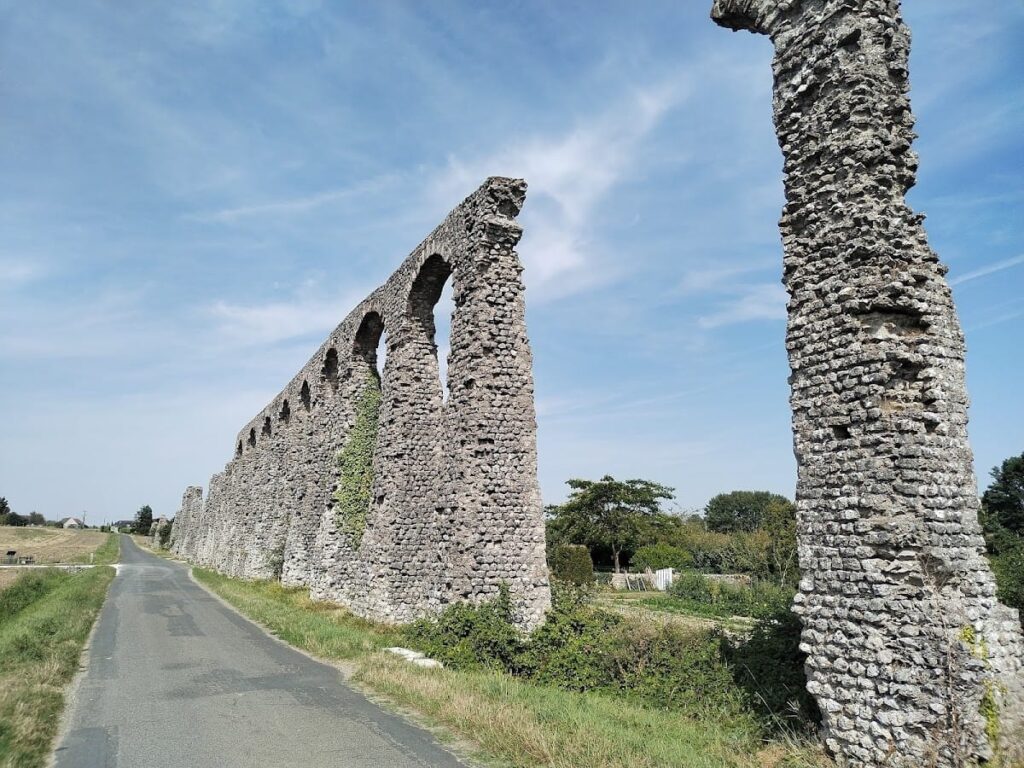

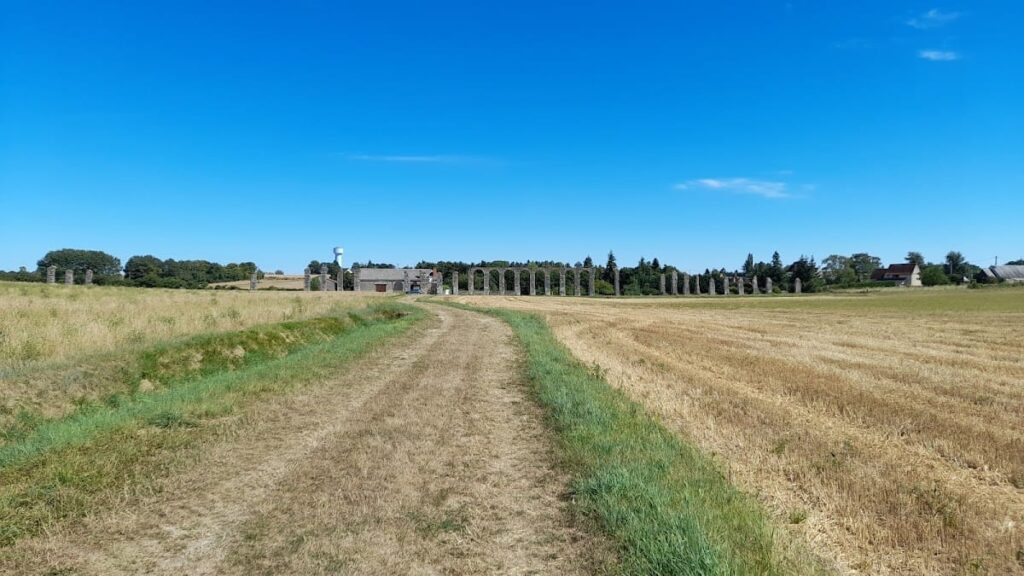

The surviving structure lies about 1.5 kilometres northeast of modern Luynes, along the eastern side of a communal road. The bridge runs generally from north-northeast to south-southwest, between the Pie Noire farm and the hamlet of Villeronde. It originally crossed the valley for about 500 metres and probably contained around 90 piers. Approximately 270 metres of the elevated section survives, including 44 visible piers. Nine consecutive piers remain joined by eight semicircular arches, while other collapsed piers survive as stone heaps or have disappeared from the northern part of the route.
The bridge structure
Piers and foundations
The tallest surviving piers stand just north of the valley’s lowest point, where a ditch passes beneath the aqueduct. Their height reaches an estimated 8.90 metres below the crowns of the arches. Across the elevated section, the piers are spaced about 4.50 to 4.90 metres apart, and the arch openings are approximately 3 metres wide.
Each pier is a narrow, four-sided truncated pyramid. Horizontal offsets in the masonry progressively reduce the width of the faces and helped bring the pier tops into alignment, allowing the arches and water channel to remain straight. The highest offsets on the inner faces probably supported temporary timber centering while the arches were built. The piers are faced with rectangular limestone rubble around a concrete-like core of mixed rubble bound with lime cement. The core was laid in fairly regular courses. The harder limestone may have come from a nearby plateau quarry, although its precise source has not been demonstrated.
The piers form four architectural groups. The two southernmost measure approximately 0.96 by 1.70 metres and 0.96 by 1.95 metres. The next five are square, measuring about 1.75 metres on each side. Nine later piers consist of two adjoining masonry masses set on either side of the continuous wall. The masses may belong to different moments, and four of these piers were altered after their first construction. Terracotta appears in their upper masonry near the arches. An earlier interpretation linked this material with repairs after subsidence or a landslide, but that explanation remains unconfirmed.
The remaining piers have more irregular rubble facing than the first three groups. Putlog holes, openings for temporary scaffolding beams, occur only on their eastern and western faces, whereas the other groups have them on all four sides. Three closely examined piers cross the continuous wall, and other piers in this group may have been constructed similarly. Their foundations are roughly one metre high and consist of uncoursed rubble masonry. They appear shallower than those of the continuous wall, measuring about 1 metre deep on the western side and 0.80 metre on the eastern side.
Arches and water channel
The arches have a rubble-concrete core covered with relatively coarse small-unit masonry. Their semicircular vaults contain pairs of radiating terracotta elements. These pieces have unusually rectangular proportions rather than standard Gallo-Roman brick dimensions, suggesting that they were made locally for this project. The lower inner surface of each vault, known as the intrados, appears to have received its curve partly through variations in the thickness of the joints.
At the top of the piers and arches, the aqueduct carried water through a masonry channel called a specus. The channel was only about 10 to 12 centimetres wide. Its height, waterproofing, and covering are uncertain, as is the precise construction of the underground section. The aerial section has an estimated gradient of 1.5 metres per kilometre. A steeper gradient of about 2.92 metres per kilometre has been proposed for the underground section, but that figure cannot be verified. The water flow cannot be calculated because the height of water within the channel is unknown.
Earlier wall and successive construction
A continuous masonry wall runs between the piers in both the southern and northern parts of the elevated aqueduct. It is at least 0.80 metres wide and survives locally to about 1.50 metres high where it is enclosed by later pier masonry. Elsewhere, only its foundations remain. The wall consists of successive courses of small limestone blocks held with lime mortar and has no facing.
The wall was probably levelled before the later piers were built across it, although an intervening period of abandonment cannot be established. It may have carried the channel of an earlier aqueduct. That earlier structure would have crossed the valley at a lower level, with a steeper slope, a shorter route, and a different terminal area from the monumental bridge. Its precise purpose remains uncertain.
Sources and possible destinations
Pie Noire and the underground route
The Pie Noire source is associated with a circular construction about 2 metres across. It may have been a settling basin, and water from a spring or well still passes through it. A probing trench indicated that the Claire-Fontaine spring may also have fed the system. The source area lies at an average elevation of about 90 metres. The valley descends from approximately 85 metres near the source to 75 metres after 400 metres, then rises to about 80 metres during the final 100 metres of the bridge route.
The total length of the aqueduct remains uncertain. Recent studies favor an estimate of approximately 1,900 metres. The often-cited figure of 1,825 metres belongs to a particular reconstruction running from the Pinnoire source to the Saint-Venant cistern. Aerial photography has suggested only part of the underground route, and its destination has not been demonstrated.
Saint-Venant complex
The Saint-Venant enclosure contains a heavily altered cistern east of the modern buildings. Its present form does not establish an ancient origin. Because it stands low on the slope, it could have supplied water only for strictly local use, so it cannot securely be identified as the aqueduct’s terminal reservoir.
Clos de Sainte-Roselle bathhouse
Aerial survey in 1976 identified the Clos de Sainte-Roselle complex, which was excavated between 1977 and 1980. Its bathhouse formed the eastern wing of a larger residence with courtyards, rooms, and ancillary buildings. The bathhouse included a cold room, a warm room, a hot room, a pool, and part of a sewer. The warm and hot rooms were heated by hypocausts, an underfloor system that circulated heated air beneath the rooms, while the cold and hot rooms ended in semicircular apses. Pottery dates the bathhouse to approximately AD 150 to 180, and it has been considered a possible destination for the aqueduct’s water. The complex was reburied after excavation.
Panchien finds
Ancient remains found in the Panchien area include a statuette of Venus Anadyomene, an artistic form of Venus shown rising from the sea, along with other objects. These finds have contributed to the proposal that an earlier form of the aqueduct may have ended there, although that destination remains unverified.
Preservation and surrounding construction
The aqueduct’s structural weakness is associated with its shallow foundations, wet and unstable clay soil, the raised road immediately west of the foundations, changing moisture in the lower ground to the east, and prevailing westerly winds. These conditions have contributed to recurring loss of stones and the slight eastward inclination visible in several piers.

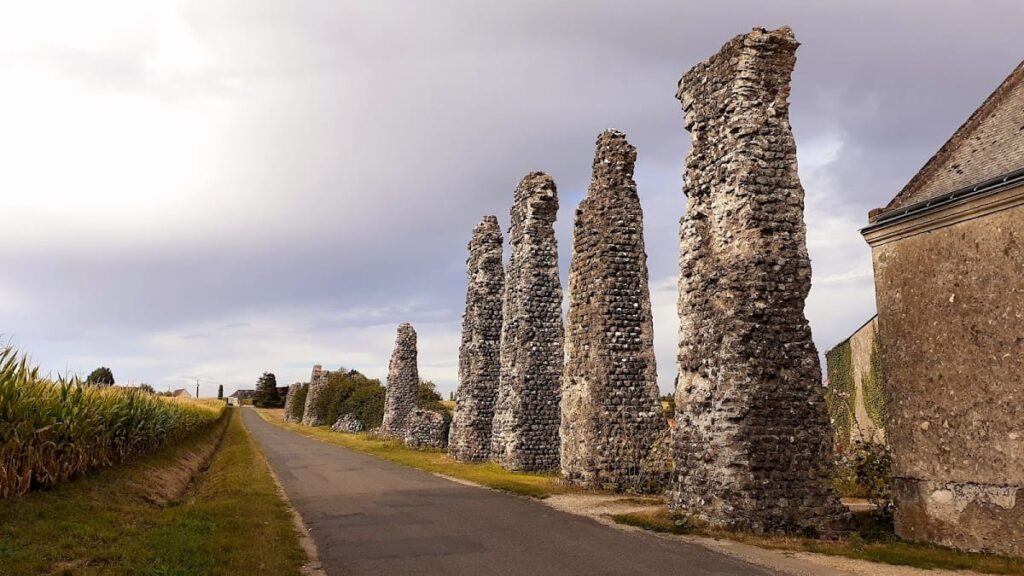

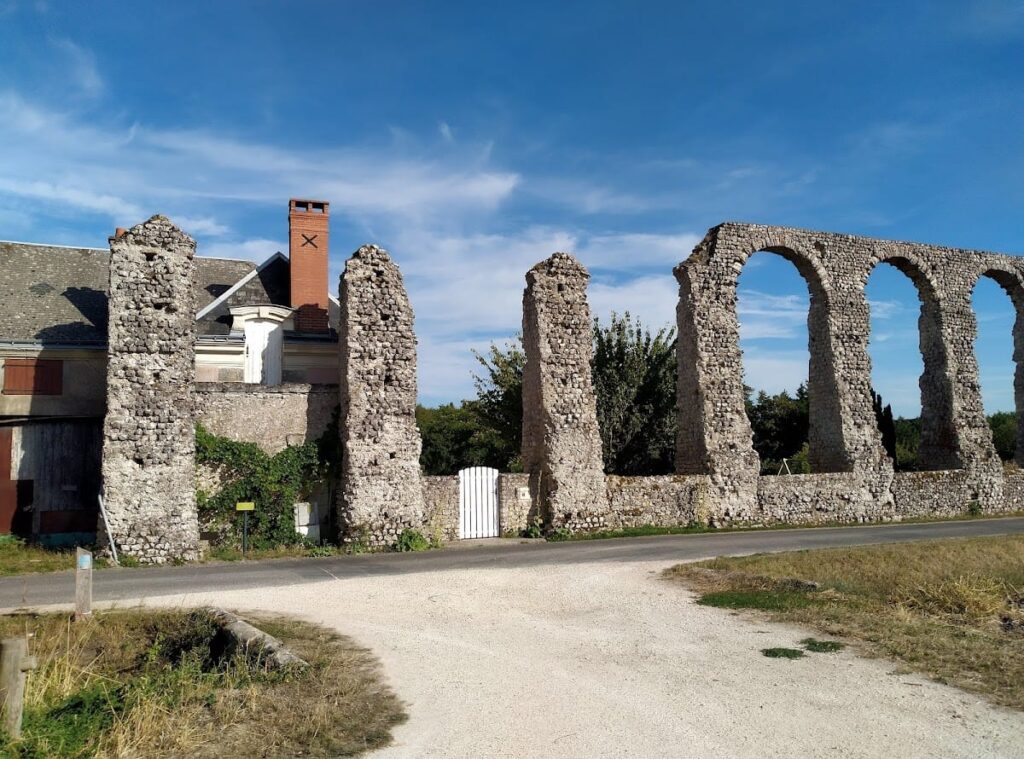

Immediately north of the surviving arches, the gable of a farmhouse built in 1877 is partly inserted between the bridge’s piers. Known as the Aqueduct Farm, the building was formerly called the Arennes smallholding. Its position records the later incorporation of the ancient structure into the occupied landscape around Luynes.
