Fort de Guentrange is a German von Biehler fortress in Thionville, France, built between 1899 and 1906 in the period following the Franco-Prussian War and Germany’s annexation of Alsace-Lorraine. It occupied the 318-metre-high Obergentringen hill as the northernmost point of the Moselstellung, a dispersed German defensive system between Metz and Thionville. The fort was intended to protect Thionville against a French attempt to recover Alsace-Lorraine and to support German strategic plans for a western offensive into France.
Construction of the Moselstellung fortress
A proposal to fortify Obergentringen hill was submitted on 3 June 1897. Thionville had already been classified by an imperial order of 3 December 1885 as a fortress to be maintained and strengthened under all circumstances. Building the new work required extensive clearing and drainage on the hilltop, while repeated landslides led to additional support structures. More than 17 million gold marks were eventually invested in the fort.
The original plan provided accommodation for four infantry companies and two foot-artillery companies. It was later revised to include two armored batteries, each equipped with four gun turrets. The batteries were test-fired in December 1900 and June 1901, and the fort entered routine maintenance service on 1 April 1906. Fort de Guentrange operated with Fort d’Illange and Fort de Königsmacker to protect Thionville, while further works were built on the right bank of the Moselle. Fort d’Illange was constructed between 1905 and 1911, and Fort de Königsmacker between 1908 and 1914.
Expansion before the First World War
The Russo-Japanese War, including the prolonged siege of Port Arthur, a fortified Russian naval base in present-day China, prompted a major revision of the fort’s defenses. Between 1912 and 1916, the perimeter was enlarged with additional infantry positions, readiness rooms, firing locations, and a second barbed-wire barrier. These changes strengthened the dispersed design, which distributed artillery, barracks, observation posts, and infantry defenses across the hill rather than enclosing them in one continuous fortress.
The planned wartime garrison numbered approximately 2,000 men, although the stated figures vary. In 1902, the 8th and 9th Companies of the 8th Rhenish Foot Artillery Regiment were stationed at the fort, and parts of its III Battalion occupied it from 1907 to 1912. During the First World War, parts of the II Battalion of the 16th Lorraine Foot Artillery Regiment formed the wartime garrison. From 1915, the companies were progressively sent to the front, leaving only a small guard force. Fort de Guentrange did not take part in combat during the war.
French possession and Maginot Line use
After Germany’s defeat in the First World War, France took possession of the fort. A French commission judged its design and technical innovations superior to those of France’s own fortifications, and features of the work later influenced the development of the Maginot Line, France’s interwar system of fortified positions along its eastern frontiers.
During the 1930s, Fort de Guentrange became part of the Fortified Sector of Thionville within the Maginot Line. French forces included elements of the 168th Fortress Infantry Regiment and the 151st Position Artillery Regiment. Between 1932 and 1934, the original short gun barrels were replaced with longer barrels measuring 3.20 metres. With French 105-mm ammunition, the altered guns could reach approximately 13,100 metres and cover the Maginot fortifications at Metrich and in the Cattenom forest. The fort was connected to the public electricity network in 1939.
Second World War and later preservation
French forces abandoned Fort de Guentrange on 14 June 1940 without disabling its guns. German artillerymen then used the two armored batteries against the Maginot works at Immerhof and Soetrich. The fort itself did not experience a major battle during the German occupation. United States forces occupied it without resistance on 12 September 1944, after German troops withdrew toward Metz. Fearing a German return, American engineers destroyed all eight gun turrets or their gun barrels. A large bombing operation against fortified works and strategic points around Thionville on 9 November 1944 had little effect because many targets were missed.
After the Second World War, the French Army used the fort as a munitions depot, particularly through the 25th Artillery Regiment, until 1971. The site was then abandoned, and vegetation spread across the hilltop. Since July 1986, the Amicale du Groupe Fortifié de Guentrange has carried out extensive clearing and conservation work. The City of Thionville owns the fort, while the association maintains it. The main barracks houses a museum, and the power station, heating plant, kitchen, and one turret gun have been restored.
Remains
Fort de Guentrange is a concealed, dispersed hilltop complex of the von Biehler type, spread across approximately 45 hectares. Its barracks and artillery positions are arranged along the summit and linked by an underground gallery system. Reinforced concrete, armored structures, concealed placements, and broad defensive belts allowed the fort to distribute its functions across the site while protecting them from attack.
Barracks and underground connections
Main barracks

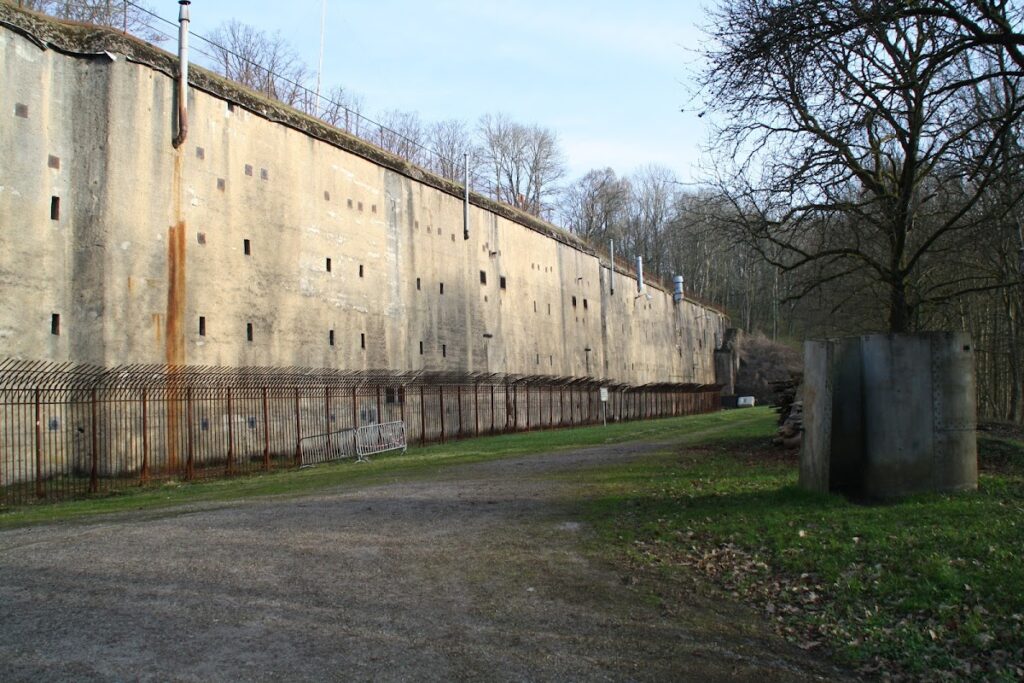

The central war barracks extends 140 metres in length, 20 metres in width, and 15 metres in height. It was the largest building in German fortress construction up to 1914. Built into the natural slope, it presented a protected 3-metre-thick concrete roof and a rear façade as its principal visible defenses. The original rear wall was 1.5 metres thick and made of masonry, with window openings about 80 centimetres wide protected by iron shutters. During the second construction phase, much of this façade was enclosed behind a double concrete wall, leaving limited ventilation openings.
Its three floors accommodated more than 1,100 soldiers. The first floor contained sleeping quarters, a medical section with an operating room, a bathroom, and the command centre. Most troops slept in hammocks on the second floor. The basement held settling tanks and three large cisterns. Foot artillery, engineers, signals personnel, and supply troops primarily occupied the main barracks.
Northern and southern barracks
Separate northern and southern barracks each accommodated approximately 270 infantrymen. Both buildings included service rooms and cisterns, forming part of the dispersed accommodation system alongside the much larger central barracks.
Underground galleries
An underground network measuring approximately 3 kilometres connected the three barracks and the two armored batteries. The galleries also linked the perimeter defenses, although some sections are not usable. Their connections brought the principal buildings and defensive installations into one protected system beneath the hilltop.
Armored artillery batteries
Battery positions and turrets
One armored battery occupies the northern sector and another the southern sector. Each contains four gun turrets, making eight positions in all. Every gun was set in an armored turret about 3 metres in diameter, protected by 15-centimetre-thick steel. A turret and its protective front armor weighed more than 60 tonnes. Approximately 3 metres of concrete covered the roof and the side facing the enemy, while armored observation cupolas provided protected points for viewing and directing fire.
Changes to the guns
The original armament consisted of short 100-mm guns with an effective range of approximately 7,750 to 9,700 metres and a firing rate of about nine rounds per minute. Between 1932 and 1934, these barrels were replaced by 3.20-metre versions. The modified guns used French 105-mm shells and reached approximately 13,100 metres. One turret gun has been restored, while the wartime destruction of the other turrets or their barrels remains part of the fort’s physical history.
Perimeter defenses
Original defensive belt
The original perimeter was enclosed by a barbed-wire barrier approximately 30 metres wide. Behind it stood seven readiness rooms, each with an armored observation post for alarm units. Infantry trenches and further readiness rooms occupied the interior. A rapid-fire gun casemate strengthened the flank defense in both the northern and southern sectors.
Later infantry positions
The second construction phase added several reinforced-concrete communication trenches and a second barbed-wire belt approximately 2,500 metres long and 30 metres wide. Five reinforced-concrete trench-defense positions protected the corners of this later barrier. Each position had one or two heavy machine guns, an armored observation post, and a retractable mast carrying a searchlight to illuminate the ground in front of the fort. A sixth position also covered the rear façade of the main barracks.
Power, heating, and surviving facilities
The ground floor of the main barracks contained the power station. Eight Deutz diesel-oil engines, each rated at 25 horsepower at 120 revolutions per minute, drove generators producing 110-volt direct current. This system supplied lighting, ventilation, air extraction, and kitchen equipment. A large coal-fired heating plant provided heat, and central heating served the barracks and batteries before the fort was connected to the public electricity network in 1939.
The surviving facilities include the main barracks museum, the restored power station, heating plant, kitchen, and one turret gun. By 2009, substantial parts of the wider site had again become heavily overgrown, while the cleared and maintained areas preserve the relationship between the barracks, batteries, galleries, and perimeter defenses.
