Fort Prince Karl: A Preserved Fort of Ingolstadt’s Outer Belt
Site at a Glance
- Rating
- 4.5
- Popularity
- Very Low
- Country
- Germany
- Primary era
- Modern
- External website
- Open
- Eras represented
- Modern
- Civilizations
- German
- Site type
- Military
- Remains
- Fort
On this page12 sections
History
Fort Prince Karl is a largely preserved late nineteenth-century fortification in Germany, built by the Kingdom of Bavaria on the Großer Weinberg near Ingolstadt. Constructed between 1877 and 1882 as part of the Bavarian State Fortress of Ingolstadt, it formed an advanced fortification belt designed to protect the city from modern artillery. The fort is named after Prince Karl of Bavaria, a Bavarian field marshal and member of the royal family.
From medieval defenses to a modern fortress
Ingolstadt already possessed substantial medieval defenses when Napoleon Bonaparte ordered most of them demolished in 1800, after the city surrendered without opposition. Following the establishment of the Kingdom of Bavaria in 1806, King Max I Joseph selected Ingolstadt as a central military base. The city was intended to serve as a protected assembly and storage site for the Bavarian army, as well as a secure recovery base after unsuccessful campaigns. Financial difficulties delayed detailed planning until the reign of King Ludwig I.
The Franco-Prussian War of 1870–71 demonstrated that the existing defenses could not adequately withstand the increasing range of modern artillery. Bavaria therefore created an advanced belt between five and eight kilometers from Ingolstadt’s city center. The system consisted of seven intermediate works and nine outer forts. Fort VI was placed on the Großer Weinberg, south of Katharinenberg, in the municipality of Großmehring.
Construction and changing military roles
Work on Fort VI began in March 1877. The main construction was largely complete by the end of November 1881, although minor work continued until the middle of the following year. The fort was formally transferred to the royal fortress governorate, the military authority responsible for administering a fortified place, on 27 October 1882. It was initially planned as a primarily artillery fort, with infantry in a supporting role, and was designed to accommodate about 600 soldiers during wartime.
Only a few years after completion, increasingly powerful artillery shells made the fort’s exposed guns vulnerable. Its intended function consequently shifted toward infantry defense, while more strongly protected attached batteries were added for heavy artillery. The inner attached batteries were built in 1888–89, followed by the right outer attached battery in 1889–90. The inner batteries were rebuilt in 1895–96. The steep ground descending toward Katharinenberg prevented the construction of a left outer battery.
The casemate vaults were reinforced between 14 September 1889 and 31 May 1892, although the work was not finished. In 1889, a field railway using the Haarmann system connected the local railway station with Forts VI and Va and the Großmehring intermediate work. This line helped move construction materials during the modernization of the fortress belt.
Renaming and further improvements
A large bread oven was installed around 1890 because supplies from Ingolstadt’s central wartime bakery could no longer be guaranteed during an enemy attack. In 1891–92, a fence modeled on French examples enclosed the fort and made a direct assault more difficult. Two armored rotating observation posts, supplied by the Gruson Works in Buckau, were added in 1893.
Fort VI was renamed Prinz Karl on 7 July 1895, thirteen years after its completion. The new name commemorated Prince Karl of Bavaria on the centenary of his birth. Garrison parades and 50 artillery salutes marked the renaming.
Prisoners, ammunition, and survival
During the First World War, the fort was used to house prisoners of war. In March 1915, it held 1,131 French prisoners, while in December 1916 its population consisted of only 200 officers. Shortly after the war, approximately 300 Spartacists were imprisoned there. The Spartacists belonged to a revolutionary socialist movement active in Germany during the political upheaval that followed the war. The last political prisoner was transferred away on 25 July 1919, and the fort was used as a collection camp for foreigners in the early 1920s.
Ingolstadt ceased to function as a military fortress in 1937. Its permanent forts were transferred to the Army Ordnance Office, the German military authority responsible for army equipment and munitions administration. The Wehrmacht, Germany’s armed forces from 1935 to 1945, used the forts until 1945, generally as ammunition depots or sites for ammunition preparation. Fort Prince Karl served these purposes as well.
After the Second World War, the United States occupation authorities demolished most of the fortifications around Ingolstadt. Fort Prince Karl survived, probably because demolition while large quantities of ammunition were stored inside could have severely damaged nearby Katharinenberg. The Bundeswehr continued to use it as an ammunition depot until 1973. It now houses the Ingolstadt explosives-disposal command.
Since 1999, the protected fort has undergone partial renovation in several stages. The work has focused mainly on removing serious moisture damage and preventing further deterioration of the original fabric. The fort is listed as both a protected architectural monument and an archaeological monument classified as a late-modern fortification within the Ingolstadt State Fortress.
Remains
Fort Prince Karl is essentially a Biehler-type standard fort, a nineteenth-century design associated with the German military engineer Hans Alexis von Biehler. Its salient, or projecting point, faces east-northeast. The fort measures approximately 300 meters across and about 180 meters from front to rear. Much of it was blasted into the dolomite rock at the summit of the Großer Weinberg, reducing its visibility from the enemy side and shielding it from direct artillery fire. The masonry consists of brick and natural stone.
Defensive works
Ditch and caponiers

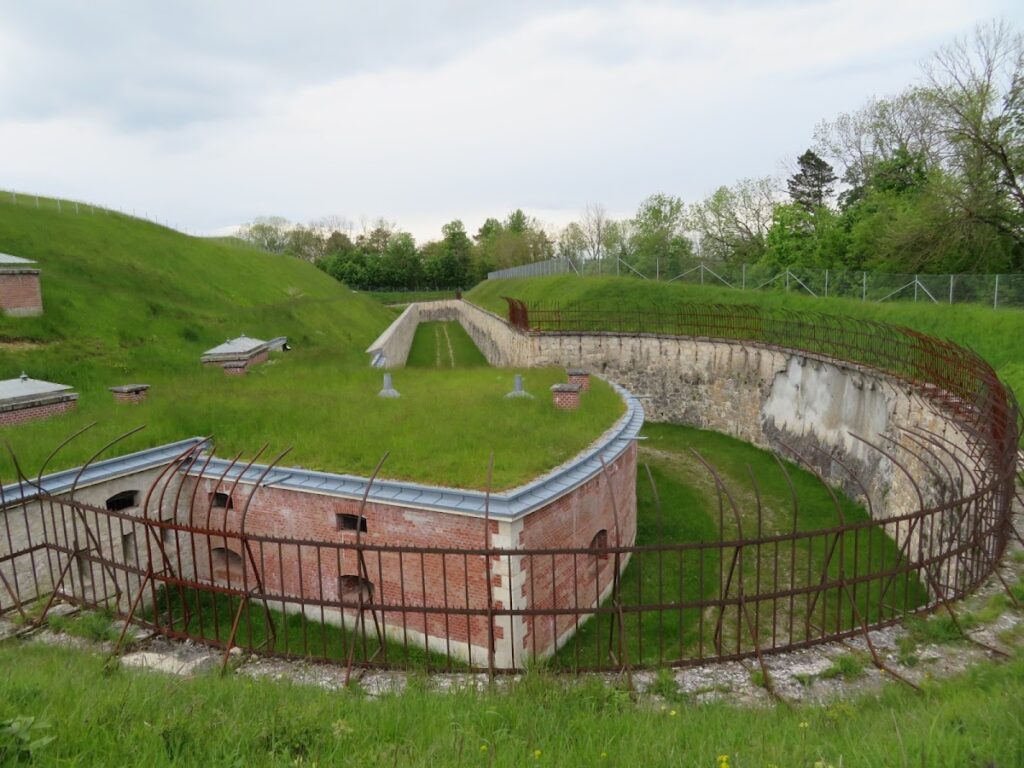

A dry ditch surrounds the fort. It is seven meters wide and approximately five meters deep, with a freestanding wall along the fort side of the faces and flanks. At the projecting front, a salient caponier, a fortified structure extending into a ditch for lengthwise fire, was built into the escarp wall. Two 9-centimeter guns on each side allowed defenders to sweep the ditch in both directions.
Each flank ditch could be covered by a shoulder caponier. The upper level of each structure held two guns, while the lower level contained openings through which infantry could fire. The assault fence added in 1891–92 enclosed the fort and remains visible near the salient caponier and the shoulder caponiers.
Guns and observation posts
The original armament included eight guns in protected casemates, or fortified vaulted chambers, for close defense. More than 22 additional guns stood above ground between traverses, which were raised earth or masonry structures intended to separate and protect gun positions. The later shift toward infantry defense reflected the vulnerability of these exposed artillery positions to increasingly powerful shells.
Two armored observation posts were installed in 1893. Their rotating design allowed observation from protected positions while limiting exposure to artillery fire. The posts were supplied by the Gruson Works in Buckau and remain part of the fort’s defensive fabric.
Gorge barracks and internal facilities

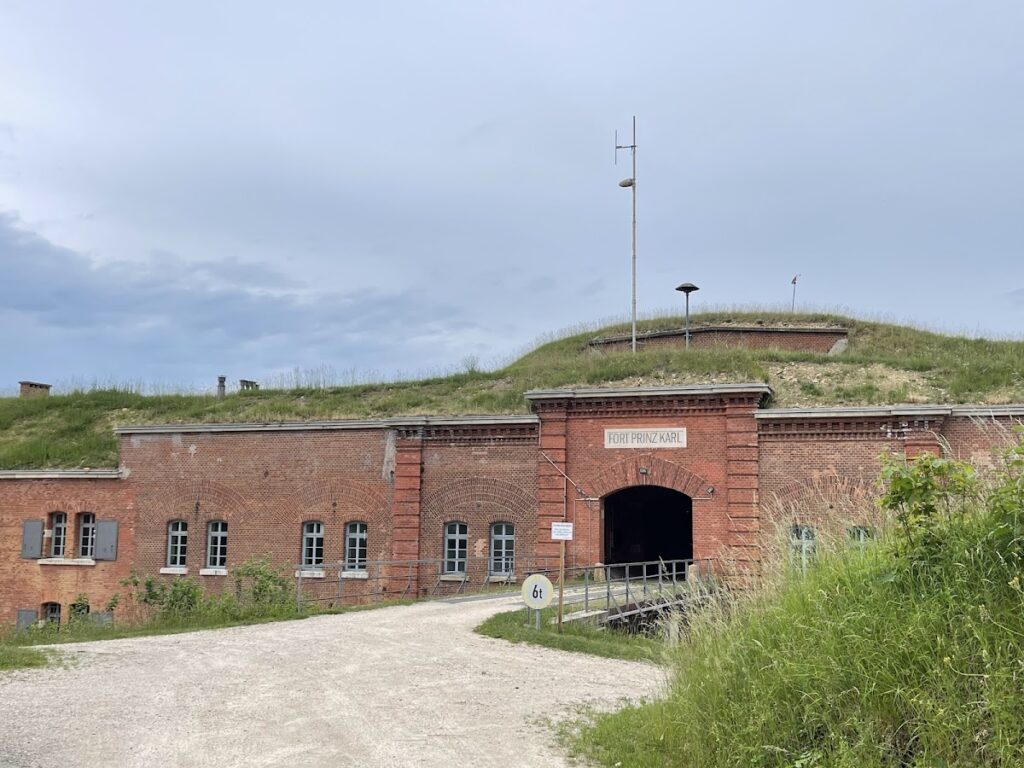

Gorge barracks
The rear side of the fort, known as the gorge, was considered less exposed to direct artillery fire. It was formed by a two-story gorge barracks that housed the garrison. A second barracks at the salient was intended for wartime occupation. The gorge-barracks windows received iron shutters to protect the interior from shell fragments during artillery fire.
The incomplete reinforcement of the casemate vaults remains visible in the upper line of the gorge-barracks facade. Additional layers of concrete and sand cover part of the vaulting, while the transition to the unreinforced sections can still be seen. This surviving change in the fabric reflects the fort’s incomplete modernization during the period when artillery technology was rapidly developing.
Water and domestic installations
The fort had its own well and a riveted water reservoir. Interior installations included a large bread oven, officers’ toilets, and toilets for enlisted personnel. Poplars were planted along the connecting roads around the fort to conceal the movement of friendly troops from enemy observers during wartime.
The original fabric is partly affected by damage, particularly from moisture. Conservation work undertaken since 1999 has sought to limit further deterioration while retaining the surviving nineteenth-century structure.
