Castello di Gambolò: A Medieval Fortress and Country Villa in Italy
Site at a Glance
- Rating
- 4.2
- Popularity
- Low
- Country
- Italy
- Primary era
- Medieval
- Eras represented
- Medieval, Early Modern
- Civilizations
- Duchy of Milan, Holy Roman Empire, Italian, Spanish
- Site type
- Military
- Remains
- Castle
On this page9 sections
History
Castello di Gambolò, also known as Castello Litta, is a fortress in Italy traditionally dated to the tenth or eleventh century. Its fortified nucleus was established around the year 1000, during the period of the medieval communes, to protect the village and the surrounding territory. The castle was initially built for mainly defensive purposes and later became a country residence.
Medieval fortress
The fortress was repeatedly plundered and partly destroyed during military campaigns in the twelfth and thirteenth centuries. Between 1412 and 1475, the fief of Gambolò was held by Antonio Beccaria, a member of an aristocratic family from Pavia associated with the Ghibellines, a medieval Italian faction generally linked to support for imperial authority in conflicts involving the papacy and its allies.
The Litta transformation
On 30 January 1573, Agostino Litta purchased the fief of Gambolò from the Spanish treasury for 60,400 lire. He planned to convert the fortress into a country villa with a large garden and a formal entrance. From 11 April that year, he acquired the private properties within the castle, beginning with those near the palace.
Seventeenth- and eighteenth-century alterations
Between 1614 and 1680, a new entrance avenue was laid out to the east of the fortress. The existing street fronts were redesigned with a polygonal widening in the Mangrate district, now Corso Vittorio Emanuele, and the avenue was aligned with the principal tower. In 1680, the former drawbridge opening was converted into an entrance portal.
Before the end of the seventeenth century, the Litta family removed the battlements and wall-walks, which were passages along the tops of fortification walls, from the castle enceinte. They also began building the gallery now called the Manica Lunga, or Long Wing. Disputes interrupted the work after a square tower was constructed at the centre of the side linking the palace with the Mirabella Tower. Construction resumed after the remaining plots had been acquired and was completed in the early eighteenth century. At that time, the Mirabella Tower received a belvedere, an elevated feature designed to provide views over the surrounding area, together with a railing.
An octagonal fountain was installed in the garden near the gallery in 1776, but it was later destroyed. The castle subsequently passed to the Municipality of Gambolò after being donated by the Robecchi family, which had inherited it from the Litta family. It remains municipally owned and in use, with the first floor of the Manica Lunga housing the Lomellino Archaeological Museum. Lomellina is the historical territory in which the present-day province of Pavia lies, in Lombardy.
Remains
The surviving complex combines the regular defensive planning associated with Visconti-Sforza fortifications, military structures linked to Milan’s Visconti and Sforza dynasties, with later residential architecture. Its essential fortified form includes a quadrilateral or trapezoidal plan, towers at the corners and at the centres of the sides, perimeter walls, wall-walks, and Ghibelline merlons, the raised teeth of a battlement.
Palace and courtyard
The palace occupies the north-western side of the castle and measured about 350 square metres. It extended approximately 50 metres westward and had a lowered round-arched entrance, a rusticated façade with deliberately roughened masonry, and an outer arch frame decorated with tooth-like projections. Beyond the entrance lay a courtyard with two colonnades facing one another and a blind wall.

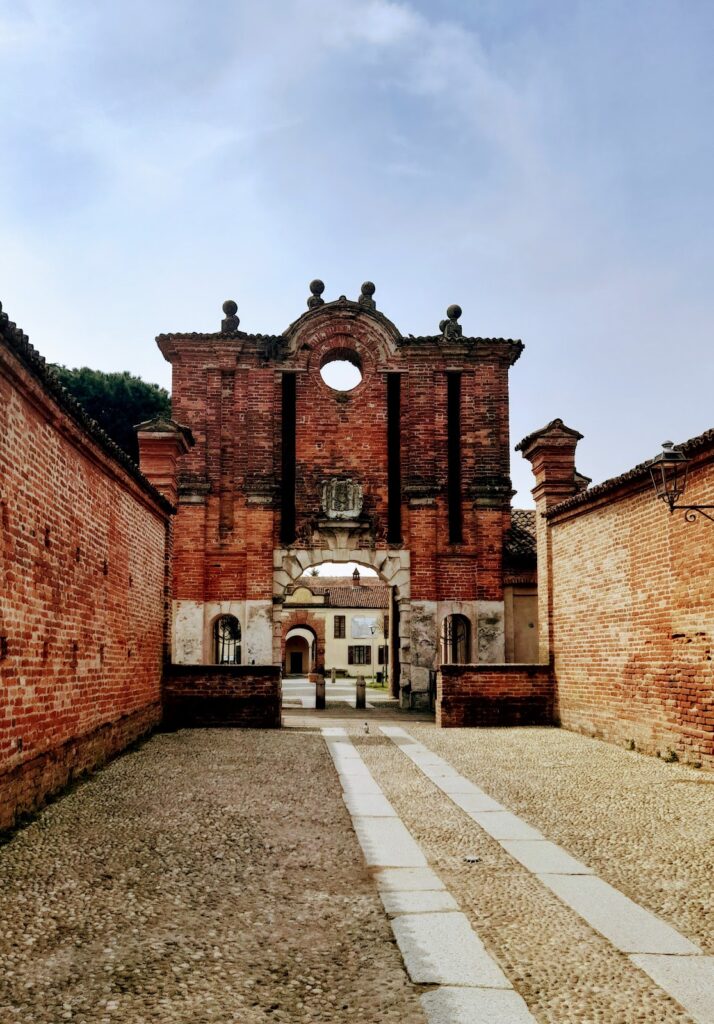

Principal tower and entrance
The principal tower preserves part of the curved outline of the former façade above its arch. The surviving openings relate to the mechanism of the drawbridge. In 1680, the opening was reshaped as an entrance portal with a flattened arch whose outer frame has a toothed decoration. This alteration records the change from a defensive approach to a more formal entrance for the residence.
Manica Lunga gallery
The Manica Lunga is about 10 metres high and has two storeys. Its ground floor contains a gallery approximately 50 metres long, supported by 15 pairs of columns resting on a parapet divided into alternating open and solid sections. Continuous material brackets rest on central stone pilasters, while stone beams lie on the column capitals. The earlier part uses ceppo, a natural conglomerate building stone, and the later part uses granite, reflecting successive phases of construction.
Windows open at the level of the archivolts, the moulded bands that follow the curves of arches, toward the section of the moat that has since been covered. Most walls are plastered, while sections of the earlier fortification remain exposed in brick. The gallery ceiling consists of reedwork with flattened vaults alternating between sail and barrel forms. Above it, the upper slab rests on a wooden framework and boards.

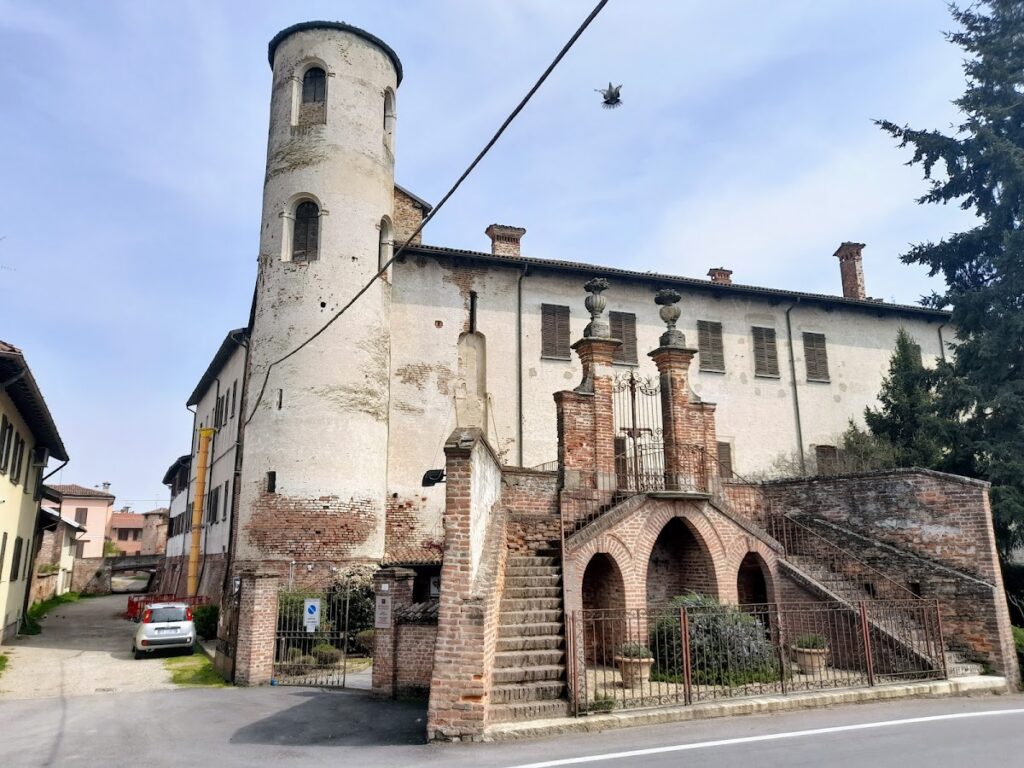

Mirabella Tower
The Mirabella Tower was enhanced in the early eighteenth century with a belvedere and railing. This addition formed part of the transformation of the fortified complex into a residential and garden setting under the Litta family.
