Himeji Castle: A Japanese Hilltop Castle and World Heritage Site
Site at a Glance
- Rating
- 4.6
- Popularity
- Very High
- Country
- Japan
- Primary era
- Early Modern
- External website
- Open
- Eras represented
- Medieval, Early Modern
- Civilizations
- Ashikaga shogunate, Tokugawa, Toyotomi regime
- Site type
- Military
- Remains
- Castle
On this page22 sections
History
Himeji Castle is a historic Japanese castle in Himeji, Japan, whose formal foundation is generally dated to 1346, when Akamatsu Sadanori rebuilt an earlier fortification on Himeyama during the Nanbokucho period, the fourteenth-century conflict between rival Northern and Southern Imperial Courts. The site later developed into a major early-modern castle complex, and its surviving buildings preserve an exceptional example of Japanese castle architecture and the political order that shaped Japan before the Meiji period.
Medieval Foundations
The first fortification on Himeyama is traced to 1333, when Akamatsu Norimura, the shugo, or provincial military governor, established a stronghold there. His son Akamatsu Sadanori rebuilt it in 1346 as Himeyama Castle, the date most often used for the castle’s formal beginning. The scale and character of the earlier Akamatsu work remain debated. At the foot of Himeyama, the site was associated with Shomyoji Temple.
Sadanori moved his main base to Shoyama Castle in 1349, while the Akamatsu family retained Himeyama as a subordinate stronghold. The Kodera family served as its hereditary castellans. After the Kakitsu War of 1441, the Yamana briefly took control. The Akamatsu regained the site during the Onin War, a conflict between rival military coalitions that lasted from 1467 to 1477. Akamatsu Masanori enlarged the stronghold with the Honmaru, or principal enclosure, together with the Tsurumimaru and Kameimaru, before shifting his main base to Oshio Castle in 1469.
The Kodera and Kuroda Castles
The Kodera family later made Himeyama a subordinate castle of its main base at Gochaku Castle. Between 1555 and 1561, Kuroda Shigetaka and his son Kuroda Shokotaka expanded the earlier fortification into a larger medieval castle that used the contours of the hill. Shokotaka also built a long barracks for poor people, lower-ranking warriors, artisans, and peddlers. Housing these groups helped incorporate them into his following and provided information about local affairs.
Kuroda Yoshitaka, widely known as Kanbei and Josui, became castellan in 1567 and held the position until 1573. In 1568, a Kuroda force of about 300 men defeated an army of approximately 3,000 led by Akamatsu Masahide in the battles of Aoyama and Dokiyama. This episode belongs to the Sengoku period, an era when regional warlords competed for territory and political control.
Hideyoshi’s Reconstruction
Hashiba Hideyoshi entered Harima in 1576 on the orders of Oda Nobunaga. Yoshitaka allied himself early with Hideyoshi. In 1577, Yoshitaka moved from the main enclosure to the Ni-no-maru, or second enclosure, and surrendered the Honmaru to Hideyoshi. After Hideyoshi subdued Harima in 1580, Yoshitaka presented Himeji Castle to him and moved to Koyama Castle south-west of Himeji.
From 1580 to 1581, Hideyoshi transformed the deteriorated stronghold into a major castle of the Azuchi-Momoyama period, the late sixteenth-century era of military reunification and large-scale castle building. He constructed a three-storey keep, expanded the stone fortifications, renamed the castle Himeji Castle, and established a large castle town to the south. He also diverted the Sanyo road through the town, helping Himeji become a political and commercial centre of Harima. Hideyoshi held a large tea ceremony at the castle in 1581.
After defeating Akechi Mitsuhide at the Battle of Yamazaki, Hideyoshi moved to Osaka Castle in 1583. His half-brother Toyotomi Hidenaga then occupied Himeji until his transfer to Koriyama in 1585. Kinoshita Iesada became lord and was transferred to Ashimori in 1601.
Ikeda Terumasa and the Surviving Castle
Following the Battle of Sekigahara in 1600, Tokugawa Ieyasu awarded Himeji to his son-in-law Ikeda Terumasa. Terumasa received control of all Harima and an income of 520,000 koku, a historical measure of assessed agricultural production used to express a domain’s income and a lord’s rank.
Between 1601 and 1609, Terumasa completely rebuilt and enlarged Himeji Castle, creating the principal complex that survives today. The Ikeda house elder Iki Tadashige and master carpenter Sakurai Genbee directed the construction administration, and the labour has been estimated at roughly 2.5 million person-days. Terumasa planned a canal linking the outer moat with the port of Shikama, but changes in elevation and his death left that work unfinished. Honda Tadamasa later achieved the water-transport connection by improving the Senba River.
The reconstruction formed part of a wider defence system in Harima. Several regional castles, including Akashi, Ako, Miki, Rikan, Tatsuno, and Takasago, were developed as subordinate castles. In 1617, Ikeda Mitsumasa was transferred to Tottori because his youth was considered unsuitable for governing the strategic site. Honda Tadamasa succeeded him after moving from Kuwana with an income of 150,000 koku. In 1618, the Nishi-no-maru, or western enclosure, was developed in connection with the marriage of Tadamasa’s son Honda Tadatoki to Princess Sen, completing the main expansion of the complex.
Himeji Domain in the Edo Period
During the Edo period, Himeji Castle served as the administrative centre of Himeji Domain and as a base for supervising the potentially hostile western tozama domains. Tozama lords were former rivals or later allies of the Tokugawa shogunate whose ties were less secure than those of hereditary allies. Himeji’s lords were chiefly members of the Tokugawa-affiliated shinpan and fudai groups. Shinpan lords were members or close relatives of the Tokugawa family, while fudai lords were hereditary Tokugawa allies.
The lordship passed successively among the Honda, Okudaira-Matsudaira, Echizen-Matsudaira, Sakakibara, Honda, and Sakai houses. The Sakai family’s arrival from Maebashi in 1749 brought greater stability, although maintaining the castle placed severe pressure on the finances of the 150,000-koku domain. The castle housed about 500 middle-ranking warriors under the Ikeda family, about 4,000 retainers and soldiers under the Honda family, about 3,000 under the Sakakibara family, and about 2,200 under the Sakai family.
Its rulers repeatedly repaired the keep. The eastern and western central pillars were strengthened in 1656, and additional structural supports were installed during the late seventeenth and eighteenth centuries.
War, State Ownership, and Preservation
During the Battle of Toba-Fushimi in January 1868, a conflict that helped end the Tokugawa shogunate and establish the imperial government, lord Sakai Tadatoshi supported the former shogun Tokugawa Yoshinobu. He was consequently treated as an enemy of the imperial government. About 1,500 troops from the Okayama and Tatsuno domains surrounded Himeji Castle and fired warning shots. One struck the Fukuchu Gate area. A large private payment by the merchant Kitakaze Shozaemon Sadatada, together with the decision of the castle’s senior retainers to surrender, prevented a full assault.
After the domains were abolished in 1869, Himeji Castle became state property. It was administered first by the Ministry of Military Affairs and then by the Army Ministry. The castle was briefly sold at auction for 23 yen 50 sen to Kanbe Seijiro, but the purchaser apparently abandoned his claim when dismantling it proved uneconomic. The property then returned to state control.
The army established the 10th Infantry Regiment at the castle in 1874 and demolished the Honjo, Mukoyashiki, and Higashiyashiki areas to create barracks. The eastern half of the outer moat was filled between 1873 and 1876 for the carriage road linking Ikuno Silver Mine with Shikama port. A fire destroyed the Bizenmaru in 1882, and the 39th Infantry Regiment was established south-west of the castle in 1896.
The government initially considered demolishing Himeji Castle, but preservation efforts led by Army engineer Nakamura Shigeto and others secured the retention of Himeji and Nagoya castles in 1879. Civic pressure then produced the Meiji Great Repair in 1910 and 1911, using national funding. The work addressed the main keep, the three small keeps, connecting galleries, kitchen, gates, turrets, and earthen walls. It halted worsening deterioration, although the keep’s inclination was not completely corrected.
Himeji City received the non-military parts of the castle without payment in 1914, and the grounds began opening to the public in 1912. The Army repaired the Nishi-no-maru in 1919. The castle became a historic site in 1928, and in 1931 its principal keep complex and 74 other structures received the National Treasure designation then in use. Under the 1950 Cultural Properties Protection Law, the designations were reorganized. Five groups comprising eight buildings became National Treasures in 1951, while 74 other structures became Important Cultural Properties.
Restoration and World Heritage Recognition
Torrential rain in 1934 damaged the Nishi-no-maru galleries and stonework, prompting the Showa restoration. Buildings were dismantled, their components repaired or replaced, and the structures reassembled. The work was interrupted by the Pacific War in 1944 and resumed in 1950. The major keep restoration from 1956 to 1964 strengthened the structure, replaced deteriorated timber, introduced lighter roofing materials, improved earthquake resistance, and reinforced the stone foundations with concrete.
Himeji was heavily bombed on 3 July 1945. Much of the surrounding city burned, and a school within the castle grounds was destroyed. Bombs struck the Nishi-no-maru, while an incendiary bomb penetrated the top floor of the main keep without exploding. Fires were extinguished, allowing the principal castle buildings to survive. Dark netting had camouflaged the castle because its white walls and military installations made it a potential bombing target; it was not deliberately excluded from the bombing area.
Himeji Castle became a Special Historic Site in 1956. UNESCO registered it as a World Heritage cultural site on 11 December 1993 under criteria (i) and (iv), which recognize a masterpiece of human creative achievement and an outstanding architectural ensemble illustrating a major stage in human history. The registered property covers the area inside the middle moat and overlaps the Special Historic Site, while its buffer zone covers the surrounding area. UNESCO recognition emphasized the castle’s exceptional wooden architecture, white plaster walls, practical defensive function, and importance as a surviving expression of Japan’s pre-Meiji feudal system.
The Heisei main-keep conservation project ran from 2009 to March 2015. It renewed the plaster, reroofed the keep, and added limited seismic reinforcement. The work revealed eight blocked window frames in the upper storey, an unidentified crest, and a roof tile bearing an inverted Ikeda crest. Vegetation surveys in 2011 and 2012 also showed that Himeyama did not exist in its present form as a primeval forest during the late Edo period. Since the 2021 management plan, official documentation has used the neutral name Himeyama woodland. Tree management now focuses on protecting stonework, soil stability, and the local ecosystem from excessive growth, falling trees, and invasive species.
Remains
Hilltop Layout and Defensive Enclosures
Himeji Castle is a hirayama castle, meaning a castle built on a low hill rising from a surrounding plain. It occupies Himeyama, about 45.6 metres above sea level, and Sagiyama, where the Nishi-no-maru lies. The castle town formed within three linked enclosure zones, the inner, middle, and outer enclosures. The inner enclosure covers about 23 hectares, while the complete historical enclosure covered about 233 hectares.
The plan follows an uzumakaku, or spiral, arrangement. The inner, middle, and outer moats and fortified baileys curve around the central keep in a counter-clockwise sequence. The inner enclosure contains the Honmaru, Ni-no-maru, San-no-maru, Nishi-no-maru, Demaru, Suikuruwa, Koshikuruwa, Obikuruwa, water baileys, waist baileys, belt baileys, and numerous smaller enclosures. The Demaru, also called the Osakoto, later became part of the zoo grounds.
Moats and Earthworks
The inner moat was about 3 kilometres long and 12 to 34 metres wide, enclosing roughly 23 hectares. The middle moat measured about 4.3 kilometres in length and approximately 20 metres in width, enclosing about 107 hectares. The outer moat extended about 5.2 kilometres and was approximately 14 metres wide. Inner moats and parts of the middle moat survive, while sections of the southern and urban middle moat were filled. Much of the outer moat was incorporated into streets, urban waterways, railway land, and housing areas.
The outer moat remained incomplete near Nozato, where the castle authorities could not forcibly reorganize land controlled by the Akuta family. A surviving defensive plan shows that a further moat was intended for wartime construction. The inner enclosure’s stone walls use more than 100,000 tonnes of tuff, granite, sandstone, and chert, much of it quarried from nearby hills. Reused materials include gravestones, stone coffins, stone mills, stone lantern bases, and stones from Buddhist funerary monuments. One hundred and seventeen marked stones representing 54 types of inscription or symbol have been identified.

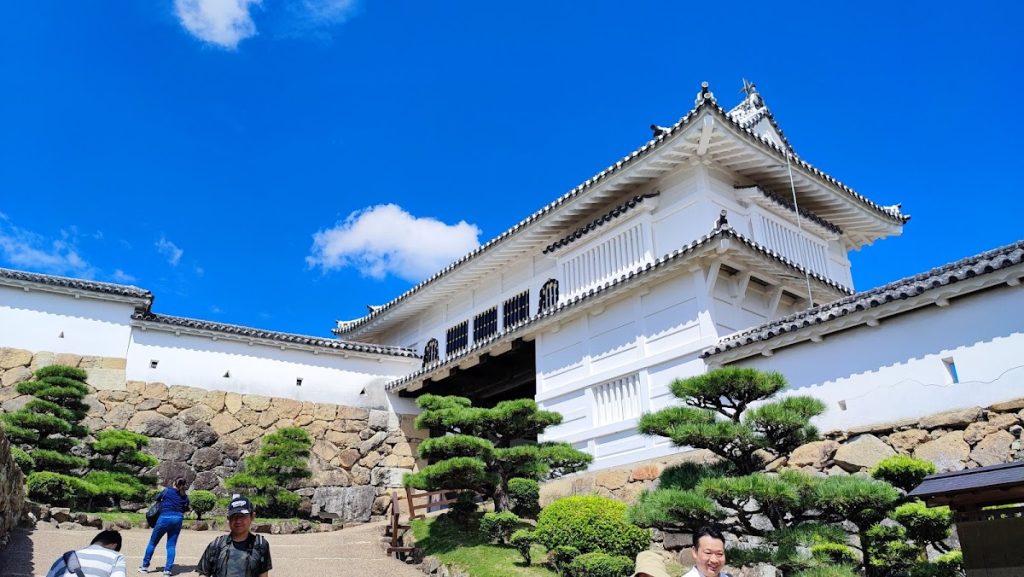

Gates and Approaches
The principal routes, baileys, and gates form steep, narrow, zigzagging passages. The direct distance from Hishi Gate to the main keep is about 130 metres, but the route is approximately 325 metres long. Its turns were intended to delay, divide, confuse, and expose attackers to fire from surrounding walls and keeps. The defensive arrangement was never tested in battle.
Principal Gates
Hishi Gate on the northern side of the San-no-maru retains a traditional appearance, with nageshi-shaped walls and katomado, or bell-shaped, windows. Tradition holds that it was transferred from Fushimi Castle. Beyond it lie I Gate, Ro Gate, and Ha Gate, while a shorter approach turns beside the Sangoku Moat toward the concealed Ru Gate. Ha Gate leads toward Ni Gate, and Ho Gate is an exceptionally narrow iron gate. The slope leading toward Ha Gate is known as Shogun Slope.
To-no-ichi Gate is traditionally said to have been transferred from Oshio Castle. Its lower walls are clad in boards, and the structure above contains openings for defenders using arrows and spears against people below. Other named gates include He, To-no-ni, To-no-yon, Chi, Ri, Nu, Mizu-no-ichi, Mizu-no-ni, Bizen, Shikama-tsu, Hojo, Soto-Kyoguchi, Take, Ichinohashi, Kuruma, Uzume, Kumadaka, Nakano, Sosha, Toriisaki, Uchi-Kyoguchi, Hisanaga, Nozato, Shimizu, and Kisaimon. Associated stonework, earthworks, buried remains, or place-names survive at many middle- and outer-enclosure gates.

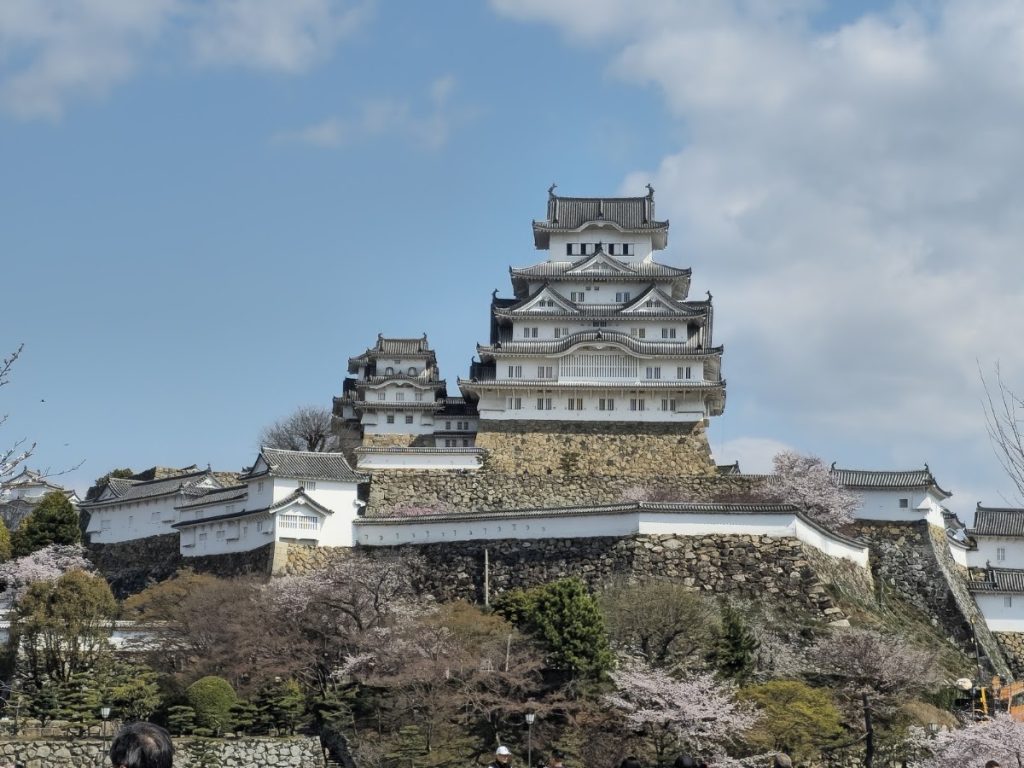

The Connected Keep Complex
The keep complex consists of the five-storey, six-level main keep with a basement, three small keeps, and four connecting galleries. These structures form a renritsushiki complex, a connected arrangement of several towers linked by defensive galleries. The small keeps are the East Small Keep, West Small Keep, and Northwest Small Keep, the last traditionally called the Inui Small Keep after the north-west direction.
Main Keep
The first keep was a three-storey structure built by Hideyoshi in 1580 on the site of the present main keep. Ikeda Terumasa dismantled it and reused its timber in the Northwest Small Keep. The present main keep complex was constructed during Terumasa’s rebuilding between 1601 and 1609.
The main keep is a late watchtower-style structure based on paired irimoya roofs, which combine gabled upper sections with hipped lower slopes. Its exterior also uses curved karahafu gables and concave chidorihafu gables. Large walls covered in white lime plaster provided fire resistance and protection against firearms. The upper storey uses a more open wall treatment in which parts of the timber frame are exposed.
The keep rises 31.5 metres above its 14.85-metre stone base, reaching approximately 92 metres above sea level. Its current weight is about 5,700 tonnes, reduced from an estimated 6,200 tonnes during the Showa restoration. Two large wooden central pillars run from the basement to beneath the sixth floor. The eastern pillar is about 95 centimetres in diameter at its base, while the western pillar is formed from joined timbers. Both extend approximately 24.6 metres. Zelkova, pine, and Japanese mountain cherry were used elsewhere in the structure. During the Showa restoration, the western pillar was replaced and joined after a single replacement trunk broke during installation.
The basement measures approximately 11.5 ken east to west and 8.5 ken north to south. It contains a washing area, kitchen facilities, and three privies. The first floor measures about 13 ken by 10 ken and connects to the East and West Small Keeps through the I and Ni Watariyagura galleries. The second floor contains surrounding warrior passages and weapon racks for matchlocks and spears.
The third floor measures about 11 ken by 8 ken and contains warrior passages, rooms for concealed soldiers, and ishiuchidana, raised platforms that brought defenders to the level of high windows. The fourth floor measures about 9 ken by 6 ken and contains additional platforms and four rooms associated with the paired gables. The fifth floor is a single hall of about 9 ken by 6 ken. The sixth floor measures about 7 ken by 5 ken and includes a central room with shoin-style features, including a raised inner room, dado rails, and a battened ceiling. A division of Osakabe, the guardian deity traditionally associated with Himeji Castle, is enshrined there.
The main keep has approximately 385 square metres of basement floor area, 554 square metres on the first floor, about 550 square metres on the second, 440 square metres on the third, 240 square metres on the fourth, and 115 square metres on the sixth. The first floor formerly contained more than 330 tatami mats, and the castle once held as many as 280 firearms and 90 spears.
Small Keeps and Connecting Galleries
The three small keeps have shoin-style upper interiors with decorative dado rails and ceilings. The West and Northwest Small Keeps use numerous bell-shaped katomado windows. The East Small Keep is three storeys with one basement level and was originally called Ushitora Turret. The Northwest Small Keep is four levels above a basement and was originally called Inui Turret. Timber from Hideyoshi’s period was found reused there during the Showa restoration. The West Small Keep is three storeys with two basement levels and has the Mizu-no-roku Gate attached; its restoration was completed in 2002.
The four principal connecting galleries are two-storey, two-level structures with basement levels. The Ni Watariyagura also incorporates Mizu-no-go Gate and functions as a turret gate. The galleries enclose a central kitchen turret that connects the main keep’s basement to the first floor of the Ro Watariyagura. The National Treasure group comprises the four keep structures, the four galleries, and the attached kitchen.
Roofs and Defensive Openings
The roofs carry numerous crest tiles and ornamental motifs. Ikeda’s swallowtail-butterfly crest, Hideyoshi’s paulownia crest, and Honda’s standing hollyhock crest appear among the roof tiles. Other designs include peaches, ginkgo leaves, mallets, waves, and a cross-like motif. Himeji is the only surviving castle reported to use drip-edge tiles on its eave-end tiles. After the Heisei reassessment, the main keep had approximately 75,000 roof tiles.
Surviving roof ornaments include Edo-period shachi, protective fish-like roof creatures, dated 1687 and 1803, as well as a Meiji-period example made in 1910. Showa- and Heisei-period replacements were based on the 1687 model. The eleven shachi installed on the main keep during the Showa restoration are all female because the surviving model was female. Four new examples made for the Heisei restoration measured about 1.9 metres high and weighed about 300 kilograms each; two were installed on the main keep.
Approximately 997 sama, or loopholes, remain in circular, triangular, and rectangular forms. Rectangular openings were used for arrows, while the other forms served firearms. Angled openings and stone-drop chutes allowed defenders to attack people below while remaining protected. Hidden loopholes and concealed stone-drop devices are built into walls, gates, and the keep.
Enclosures, Wells, and the Nishi-no-maru
Storage and Supply Areas
North of the main keep, the Koshikuruwa contained wells, rice stores, and salt stores for a siege. Ordinary-period warehouses stood around Himeyama. The adjacent Suikuruwa provided a supply route between the keep and Koshikuruwa and contains gates numbered Mizu-no-ichi through Mizu-no-go.
A 5.2-metre section of the unusual Abura Wall survives near Ho Gate and Mizu-no-ichi Gate. It is an earthen wall rather than a white-plastered wall. Its construction may have incorporated oil or boiled glutinous-rice liquid, although its date and purpose remain uncertain.
Obikuruwa and Okiku’s Well
The Obikuruwa lies south-east of the main keep and was arranged as a firing position. Its shape has also given it the popular name Harakirimaru. The surviving well known as Okiku’s Well was originally called the Tsurube-tori Well. Its association with the Okiku legend became established after the castle opened to the public during the Taisho period. The tradition belongs to the folklore associated with the castle and the ghost story of Okiku’s Well.
Nishi-no-maru
The Nishi-no-maru occupies Sagiyama west of the keep. It contains the Keshoyagura and a line of connected galleries called Nagatsubone, where women of the household lived. Keshoyagura was built in 1618 in connection with Princess Sen and her marriage to Honda Tadatoki. The Tenjuinmaru and Musashino Palace were also associated with Sen’s residence. The Nishi-no-maru galleries, Keshoyagura, and numerous turrets survive as part of this residential and defensive area.
San-no-maru and the Castle Town
The San-no-maru formerly held the San-no-maru Palace, Mukuranogoten, the Honjo residence, the Mukoyashiki, gardens, warehouses, and Musashino Palace. Its interiors included lavish wall paintings, sculpture, and gold leaf. The gardens included a pond garden, an artificial hill, and a tea house. Excavation in 2014 identified the remains of San-no-maru Avenue, approximately 200 metres long and 21 metres wide, together with building foundation stones. The route to the Honjo measured about 8 metres wide.
The middle enclosure was primarily a warrior district. It contained the lord’s East and West Residences, houses of senior retainers, the Koko-do domain school, and the Kiri-no-Baba area. The outer enclosure contained lower-ranking warriors, townspeople, temples, markets, and the 78-block castle town known as Himeji Town or Uchimachi. Archaeological investigations have found early Edo-period warrior residences, wells, drainage channels, hearths, foundations, stonework, domestic pottery, and a section of the middle-moat wall.
Across the site, the surviving remains include the main keep, small keeps, turrets, connecting galleries, gates, earthen walls, stone walls, moats, earthworks, gardens, wells, storehouses, and archaeological remains of palaces and residences. Of the 83 identified buildings, 74 are Important Cultural Properties, comprising 27 turrets and connecting galleries, 15 gates, and 32 earthen walls. The five National Treasure groups comprise eight buildings, including the main keep, three small keeps, four principal connecting galleries, and the attached kitchen. Together, the white walls, roof forms, curved stonework, loopholes, gate sequence, and connected-keep arrangement express both the castle’s military purpose and its monumental appearance.
