Fortín de Sástago: A Carlist War Optical Fort in Spain
Site at a Glance
- Rating
- 4.5
- Popularity
- Very Low
- Country
- Spain
- Primary era
- Modern
- Eras represented
- Modern
- Civilizations
- Spanish
- Site type
- Military
- Remains
- Fort
On this page7 sections
History
Fortín de Sástago is a nineteenth-century riflemen’s fort in Sástago, Spain, built in the second half of 1875 during the Third Carlist War. This Spanish civil war pitted supporters of the Carlist claim to the throne against forces defending the established constitutional monarchy. The fort formed part of a defensive communications system along the Ebro corridor.
The Ebro defensive network
Fortín de Sástago belonged to a chain of 45 optical towers extending from Zaragoza to Amposta along the right bank of the Ebro River. Optical towers were military communications structures that transmitted visual signals between fortified positions. Their network supported the defense of a strategically important route during the conflict.
General Manuel de Salamanca Negrete ordered the fortification works while reorganizing the defense of the Ebro corridor against Carlist forces. Captain Manuel Bringas Martínez of the Engineers Corps directed the technical design and developed a standard model for the optical towers along the line. In Aragón, the Salamanca Tower of Caspe, the Fortín de Novillas, and Fortín de Sástago were the only structures to depart from that model.
Heritage recognition
Fortín de Sástago is included among the castles recognized as Assets of Cultural Interest under the additional provision of Aragón Cultural Heritage Law 3/1999, dated 10 March. This Spanish heritage designation provides legal recognition and protection to important cultural properties. The designation for the fort was published in the Official Gazette of Aragón on 22 May 2006.
Remains

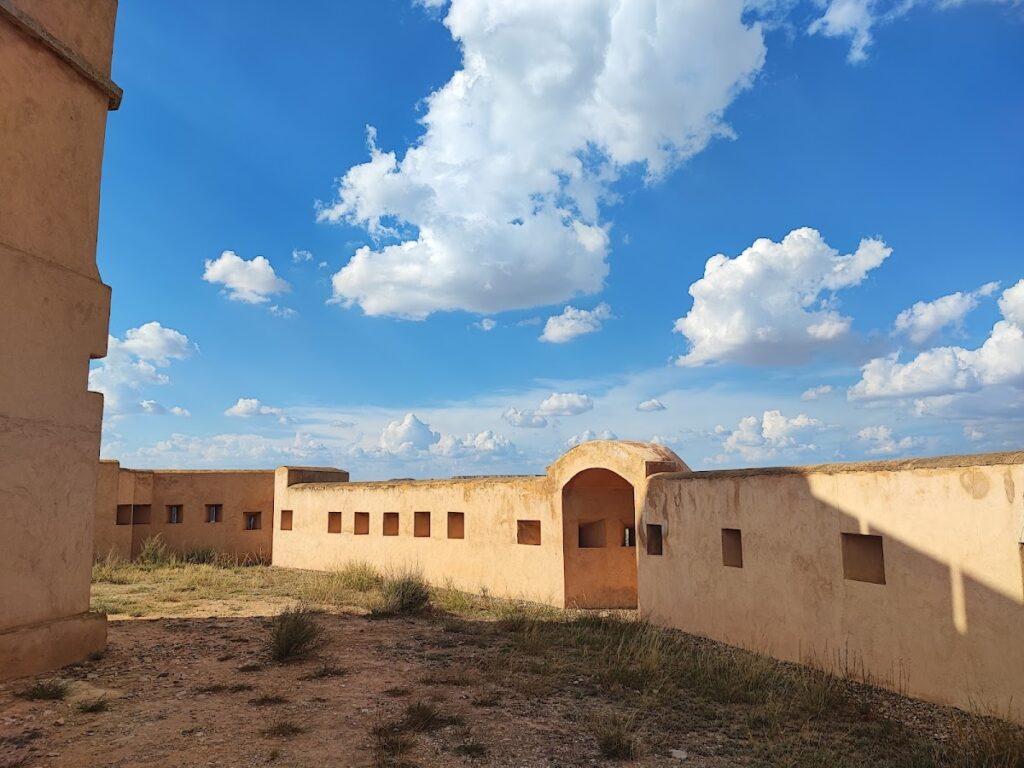

Fortified enclosure
The fort occupies a summit within a meander of the Ebro River, giving it extensive visibility toward Alforque, Cinco Olivas, Alborge, Sástago, and the surrounding terrain. Its central tower stands inside an irregular pentagonal enclosure made of masonry covered with gypsum plaster. Bastions, projecting defensive sections designed to provide fire along the walls, and small sentry turrets occupy the perimeter.
Entrance and perimeter defenses
A moat protects the entrance, which is approached between two walls. One wall was extended to form a bent entry passage, making the approach more defensible. Two rectangular rooms or dependencies flank this section of the enclosure, with bastions projecting from their outer ends. Other bastions or sentry turrets mark the remaining corners of the irregular polygon. The approximately circular turrets open toward the interior and are covered by rough small vaults. Lines of loopholes run through all the enclosure walls for defensive use.
Central tower
The central tower has a square plan, with chamfered corners faced in ashlar, or carefully cut stone. It rises through three levels, whose arrangement can be inferred from the exterior pattern of the loopholes. The lowest level served for storage, the middle level provided accommodation for the garrison, and the upper part formed a roof terrace. Its parapet was pierced with embrasures, and the terrace supported optical signaling.
Unlike the other optical towers built in the area during the Third Carlist War, the central tower carries a small square upper structure above one corner of the roof terrace. An ashlar pillar at one of its angles supports this structure from ground level, giving the tower a distinctive form within the defensive network.
