Forte di Sant’Andrea: Venice’s Sixteenth-Century Lagoon Fortress
Site at a Glance
- Rating
- 4.6
- Popularity
- Very Low
- Country
- Italy
- Primary era
- Early Modern
- Eras represented
- Medieval, Early Modern
- Civilizations
- Venetian
- Site type
- Military
- Remains
- Fort
On this page14 sections
History
Forte di Sant’Andrea is a sixteenth-century fortress built by the Venetian Republic on Sant’Andrea Island near Venice, Italy, to guard the principal maritime approach through the Lido. It formed part of Venice’s lagoon defense system and was intended chiefly to prevent enemy ships from reaching the city rather than to withstand a prolonged attack at close range.
Planning and Construction
The fortress replaced earlier defensive works at a point considered especially vulnerable from the sea. In 1534, Michele Sanmicheli, a leading Italian architect and military engineer, proposed strengthening the existing forts of San Nicolò and Sant’Andrea, digging a canal around Venice, and adding an earthen defensive bulwark. On 27 January 1535, the Council of Ten, the Venetian Republic’s powerful governing and security institution, approved the adaptation of Sant’Andrea and authorized the purchase of stone for its foundations.
In 1536, Francesco Maria della Rovere, duke of Urbino and a major military and political figure, criticized Sanmicheli’s model and advised that the sides facing the sea should be stronger. Sanmicheli incorporated these recommendations. His departure for the eastern Mediterranean in 1537 delayed the project, but construction was authorized again in 1543, when the mason Andrea Lion received the building contract.
Antonio da Castello, the captain responsible for the fortress’s artillery and its deployment, later proposed substantial changes. The Council of Ten approved them, and Sanmicheli incorporated the alterations despite his reluctance. Building began in 1543 under Sanmicheli’s supervision. In 1544, Leonida Atthar of Cyprus, an engineer in Venetian service, became the site architect working under him. A simultaneous artillery test in 1547 assessed the strength of the nearly completed fortress, which remained intact.
Military Purpose and Later Use
Work was suspended in 1549 and resumed briefly in 1570 and 1571 because of the Ottoman threat. The fortress’s guns were intended to stop vessels before they could approach Venice, while its presence also served as a visible warning to Ottoman visitors and ambassadors. Once the immediate danger of a sea attack diminished, its garrisons were largely representative rather than maintained for continuous active defense.
Sant’Andrea was not an ordinary prison, although security measures allowed troublesome individuals to be confined there. Giacomo Casanova, the eighteenth-century Venetian adventurer and writer, was detained in the fortress from March to July 1743. He later described Sant’Andrea and its daily life in his memoirs.
The fortress fired on an enemy vessel only once. On 20 April 1797, shortly before the fall of the Venetian Republic, its artillery struck the French ship Le Libérateur d’Italie, killing the commander and forcing the vessel to surrender. The strategic function of Sant’Andrea ended on 12 May 1797, when the Venetian Republic collapsed.
After 1797, the fortress passed through successive periods under the Austrian Archduchy, the Kingdom of Lombardy-Venetia, the Kingdom of Italy, and the Italian Republic. In more recent times it served as a barracks before being abandoned. Giorgio Vasari, the sixteenth-century artist, architect, and writer, called Sanmicheli “the excellent one.” Sanmicheli himself regarded Sant’Andrea as among the most impressive military works in Europe and compared its grandeur with that of Roman construction.
Stabilization and Abandonment
Because the fortress was continually sinking into the ground, major restoration and consolidation works were later carried out. A new subfoundation around the base stabilized the structure. The intervention secured the fortress physically, but no later decision assigned a new use to the complex. Sant’Andrea is now abandoned and overgrown, and it is owned by the Italian Ministry of Defence.
Remains
Forte di Sant’Andrea stands at the end of Vignole Island in the Venetian Lagoon. The complex consists of a central building raised over the remains of a fifteenth-century tower and an external projecting artillery platform, or bastion. Stone, brick, and earthen embankments form the construction, while the later subfoundation extends several metres beyond the fortress perimeter and remains visible in the water.
Central Tower and Principal Facade
The Central Tower
The central building incorporates the remains of the original fifteenth-century tower. A terrace occupies its summit, and the paving is arranged to collect rainwater and direct it towards a central opening. On the seaward side stands a flagstaff or banner support made from Istrian stone.

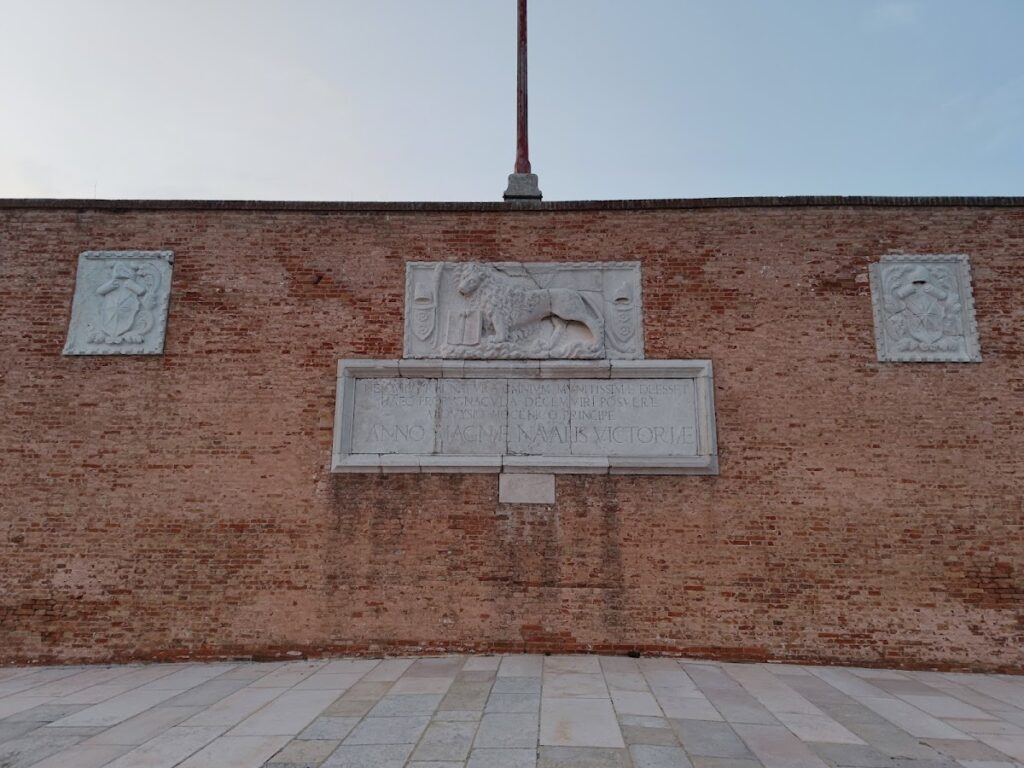

A plaque commemorating the Battle of Lepanto is fixed to the front of the tower. The Battle of Lepanto was the 1571 naval victory in which the Holy League, a coalition of Christian states including Venice, defeated the Ottoman fleet. The plaque is surmounted by a relief of the Lion of Saint Mark, the emblem of Venice’s patron saint and a traditional sign of Venetian authority.

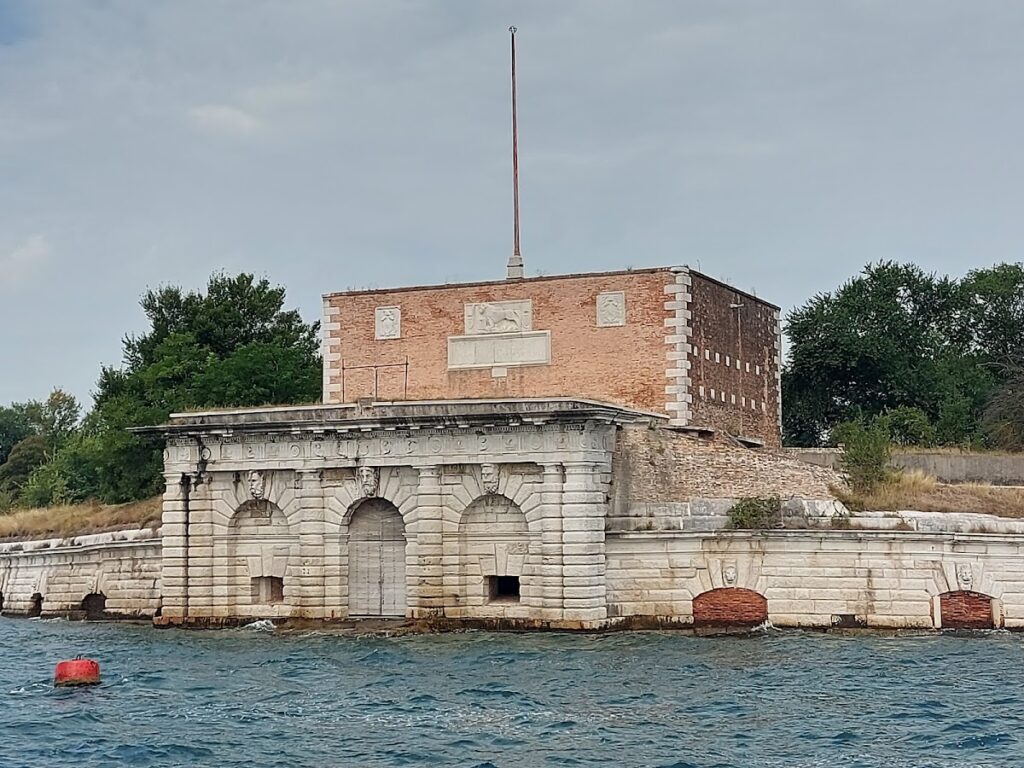

The Principal Facade
The main facade faces the approach to the fortress and contains a central gateway with a door clad in white stone. Two equal side arches create recessed masonry bays, each containing additional artillery openings. The facade is almost entirely built in rusticated masonry, in which the stone is given a deliberately rough, strongly textured finish.
Semicolumns, projecting pilasters, recessed arches, and deep openings give the elevation a pronounced three-dimensional composition. The Doric order shapes the arrangement, while the arch keystones carry bearded heads. The string course, capitals, and upper architectural band provide the principal exceptions to the extensive rustication. Sanmicheli used a 1:7 proportion for the fortress’s architectural elements, following a principle recommended by Vitruvius, the ancient Roman architect and theorist whose ideas influenced Renaissance design.
Bastion and Artillery Works
Water-Level Gun Positions
The external bastion contains the main artillery batteries. Its rectangular gun openings were set almost at water level, allowing the guns to sweep the horizon and strike enemy vessels close to the waterline. Their low and nearly level trajectory also helped prevent the artillery from striking the opposing fort of San Nicolò.
The fortress used long-barrelled cannon with smaller calibres, greater range, and flatter trajectories than the heavier bombards of the preceding century. Forty gun positions were arranged at water level, with another forty above the ramparts. Together, these positions allowed the fortress to cover different angles of approach.
Vaulted Ammunition Chamber
Within the bastion lies a long vaulted casemate, a protected chamber for guns, ammunition, or personnel. An earthen embankment covers the vault and adds both protection and structural mass. A central corridor passes through the casemate and links the bastion with the inner courtyard.
At the courtyard end, two sockets held the pivots of a winch used to move ammunition. The bastion and casemate may originally have been joined by a vault that was later removed, changing the relationship between the artillery platform and its protected storage space.
Entrance and Defensive Arrangement
Protected Access
The entrance is positioned opposite the bastion. A canal separates the landing place from the courtyard and protects access to the rear of the fortress. This arrangement placed water between the approach and the interior while maintaining a controlled connection with the lagoon.
Rear Defense
The rear side was left without armament so that an enemy who captured the fortress could not easily use it as a bridgehead. Its defense instead depended on the numerous guns positioned to cover different directions of approach. The resulting arrangement combined a strongly armed seaward front with a protected entrance and a rear whose security relied on overlapping artillery coverage.
