Segovia Aqueduct: A Roman Water-Supply System in Spain

Site at a Glance

Rating: 4.8
Popularity: Very High
Country: Spain
Primary era: Classical
External website: Open

Eras represented: Classical, Early Modern
Civilizations: Roman
Site type: Infrastructure
Remains: Aqueduct

On this page4 sections

History

The Segovia Aqueduct is a Roman water-supply system in Spain, built to carry spring water to the city of Segovia. Its construction date remains uncertain. It was long assigned to the first century AD, possibly during the reign of Domitian, while a reconstruction of its dedication inscription proposed completion around AD 98. Archaeological evidence published in 2016 instead placed its construction after AD 112, during the reign of Trajan or the beginning of Hadrian’s reign.

The aqueduct drew water from a mountain spring in the La Acebeda area, approximately 17 kilometres from Segovia. It supplied fountains, public baths, private houses, and the Alcázar, Segovia’s fortified royal palace and castle. Within the walled city, the water entered a distribution reservoir known as a castellum aquae, from which it was directed into urban channels before following a largely underground route. The line of the main channel has been marked on the city’s pavements.

The aqueduct remained in use until 1973. Its continuing function depended on the survival of the wider water system, which included collection and settling installations outside the city as well as the urban distribution network. The elevated bridge was needed where the channel crossed a depression while maintaining the gradual slope required for water to flow by gravity.

Medieval destruction and reconstruction

A portion of the aqueduct was destroyed in 1072. The first major reconstruction followed during the reign of Ferdinand and Isabella, the Catholic Monarchs, who jointly ruled Castile and Aragon in the late fifteenth century. Pedro Mesa, the prior, or head, of the nearby Jerónimos del Parral monastery, directed the work. Thirty-six arches were rebuilt while the original design and workmanship were retained.

The central niches and their statues were added during the sixteenth century. One of the aqueduct’s images of the Virgin became associated with a continuing Saint Barbara’s Day observance on 4 December. On that day, cadets from Segovia’s artillery academy drape the image with a flag. Saint Barbara is traditionally regarded as the patron saint of artillery.

A popular foundation legend gives the aqueduct a supernatural origin. It says that a girl asked the Devil to build it so she would not have to carry water up the mountain. He agreed to complete the work before the cock crowed in exchange for her soul, but failed when only one stone remained. The story connects the resulting gap with a statue of the Virgin.

Protection and restoration

The Segovia Aqueduct was declared a Spanish national monument on 11 October 1884. Together with Segovia’s Old Town, it became a UNESCO World Heritage Site in 1985 under criteria i, iii, and iv.

Over time, environmental pollution, erosion, cracking in the granite, water leakage, and the differing decay of individual stone blocks damaged the structure. Vehicles passed between the arches until 1992, while loud concerts and other musical activities at the base also placed pressure on the monument. A comprehensive restoration directed by the architect Francisco Jurado began in 1992 and lasted almost eight years. Traffic and pollution in the surrounding area continued to pose risks after the work.

Remains

The aqueduct extends for approximately 17 to 18 kilometres overall and runs for more than 15 kilometres before reaching the city. Its water begins at a spring in La Acebeda. It was first collected in a cistern called El Caserón, then carried through a channel made from stone blocks to the Casa de Aguas, a second tower where the water settled and its sand was cleared. From there, the channel followed a gradient of about one percent for roughly 0.7 to 0.8 kilometres towards the Postigo, the rocky outcrop on which the walled city developed around the Alcázar.

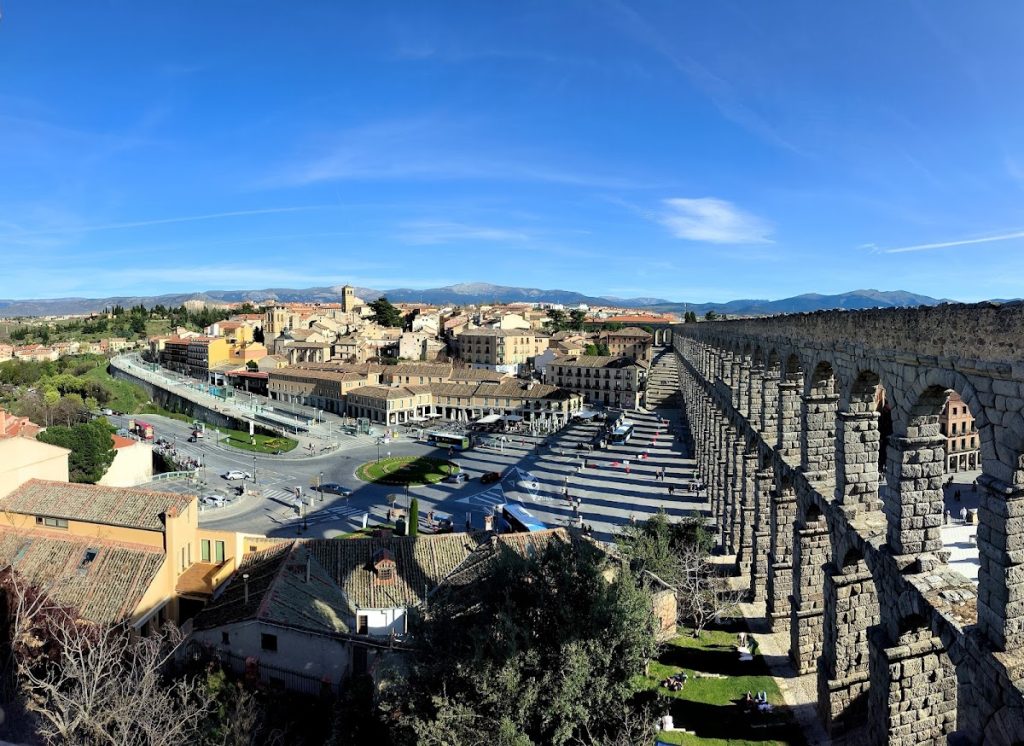

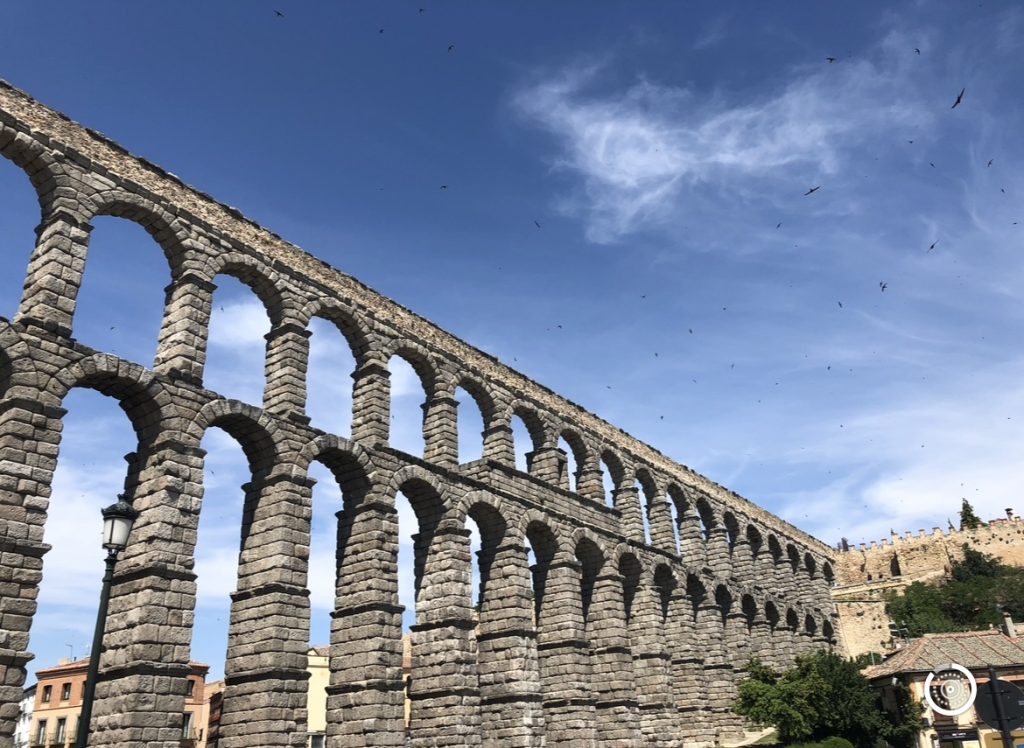

At Plaza de Día Sanz, the aqueduct turns sharply towards Plaza del Azoguejo, where its raised bridge crosses a depression. The arcade has two levels and contains 167 arches. From the city entrance to Plaza de Día Sanz, 75 are single arches. These are followed by 44 double arcades, counted as 88 arches individually, and four additional single arches.

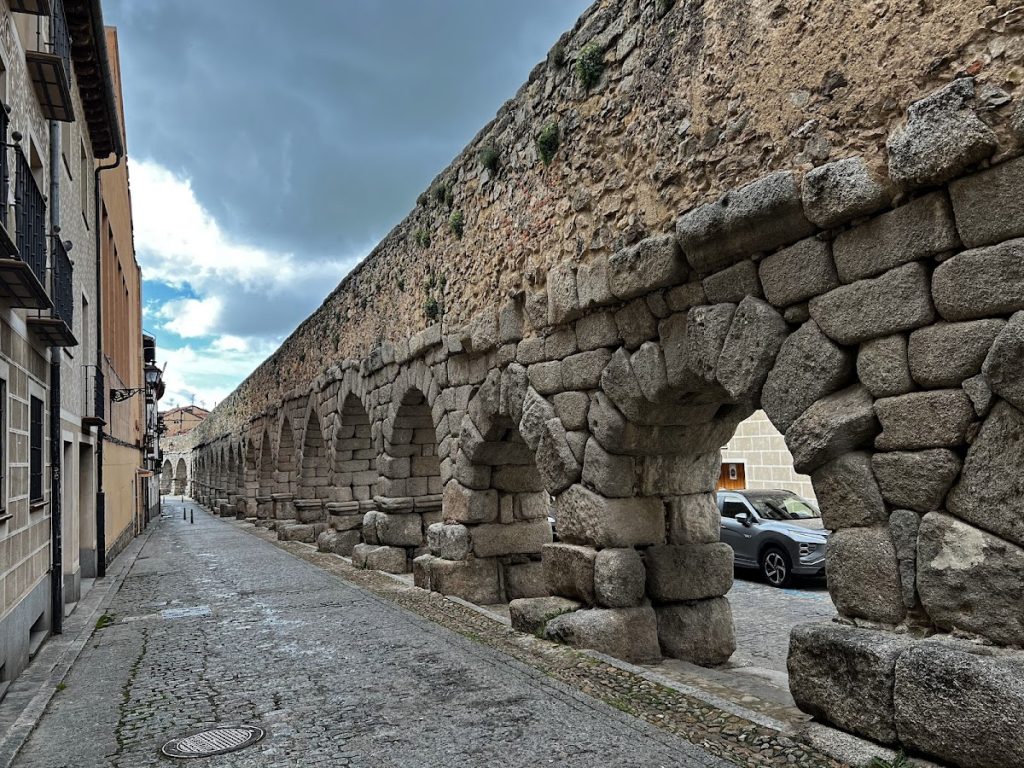

The highest part of the arcade rises approximately 28 to 28.5 metres, including nearly 6 metres of foundations. Its granite blocks were laid without mortar. The lower level follows the uneven ground, while its pillars narrow upwards in stepped sections. Their cross-sections measure about 1.8 by 2.5 metres near the top and approximately 2.4 by 3 metres at the base. The upper pillars are shorter and thinner, allowing the two levels to adapt to the changing terrain.

The upper arcade carries an attic containing the water channel. The channel has a U-shaped section measuring approximately 0.55 by 0.46 metres, and its construction follows principles associated with Vitruvius, the Roman architect and writer whose De Architectura described building and engineering practices. The two levels have simple moulded decoration. Upper-level arches span about 5.1 metres, while those below span approximately 4.5 metres.

The first section includes the 36 arches rebuilt in the fifteenth century after the destruction of 1072. Their form preserves the arrangement of the Roman structure. The surviving granite ashlar construction, simple mouldings, two-tier arcade, and water channel together express the aqueduct’s principal architectural character.

During the Roman period, the three tallest arches carried a plaque with bronze letters naming the construction date and builder. The plaque itself is no longer legible or extant, but the anchor points for its letters allowed its text to be reconstructed. Two niches remain visible at the top, one on each side of the aqueduct. One traditionally held an image of Hercules, the Greco-Roman heroic figure regarded in Segovian legend as the city’s founder.

The niches later held images of the Virgin of Carmen and Saint Sebastian. The original image of the Virgin, damaged after almost five centuries outdoors, was replaced by a resin replica in 2019. After restoration, the original was moved to the Casa de la Moneda museum, Segovia’s historic mint building. The aqueduct’s surviving bridge and its associated waterworks preserve the physical relationship between Roman engineering, later rebuilding, and the city’s continuing historical traditions.
