Festung Fürigen: A Swiss Second World War Rock Fortification
Site at a Glance
- Rating
- 4.8
- Popularity
- Low
- Country
- Switzerland
- Primary era
- Modern
- External website
- Open
- Eras represented
- Modern
- Civilizations
- Swiss
- Site type
- Military
- Remains
- Fort
On this page11 sections
History
Festung Fürigen is a Swiss Second World War rock fortification at Stansstad, built into the Bürgenstock as part of the National Redoubt defensive system. The National Redoubt was Switzerland’s strategy of withdrawing its army into the Alpine region while holding important passes, transport routes, and bottlenecks. Also designated Artillery Work A 2255, the fort was intended to help defend the routes around the Stansstad bottleneck.
Construction and military purpose
The rough construction phase ran from February to July 1941, following plans prepared by the Office for Fortification Construction of the Swiss Federal Military Department. The Beckenried construction company Murer drove a principal tunnel approximately 200 metres into the Bürgenstock. Its contract required the employment of discharged servicemen in an appropriate proportion and gave priority to unemployed servicemen when new workers were hired.
The installation was completed at the end of July 1942. Technical acceptance and transfer to the troops followed in October 1942. The fort was designed to block the Stansstad bottleneck between Hergiswil and the Archeregg bridge at Stansstad, as well as the crossing at Rengg Pass on the Lopper ridge.
Festung Fürigen formed part of the wider Stansstad defensive position, a coordinated group of fortifications intended to block a strategic route rather than function as an isolated installation. This position lay along the Lucerne–Brünig/Gotthard axis and contained approximately two dozen installations. The Lopper approach was defended by an infantry work and the artillery works Fürigen and Kilchlidossen, supported by two rear infantry works, a mine barrier, and three infantry gun positions on the lakeshore.
Garrison and later history
During active service, the 4th Division provided the garrison. Approximately 80 soldiers operated the fort, and each cannon required a crew of seven or eight men. Other positions supported the defensive system around the Bürgenstock, Rotzberg, Lopper, Hergiswil, and Stansstad. In June 1941, the 5th Division built two infantry works between the Bürgenberg and Rotzberg to add depth to the defenses along the Lucerne–Stans–Stansstad axis.
The defensive position was expanded during the Cold War and during construction of the motorway at the Lopper. These later additions included another infantry work, shelter caverns, and pillboxes. Stansstad is regarded as a defensive position of national importance.
The Swiss Army abandoned Festung Fürigen in 1987. The fort opened as one of Switzerland’s first modern fortification museums in 1991 and is now one of three exhibition sites of the Nidwalden Museum. Its rooms and installations largely retain the arrangement and equipment of the construction period.
Remains

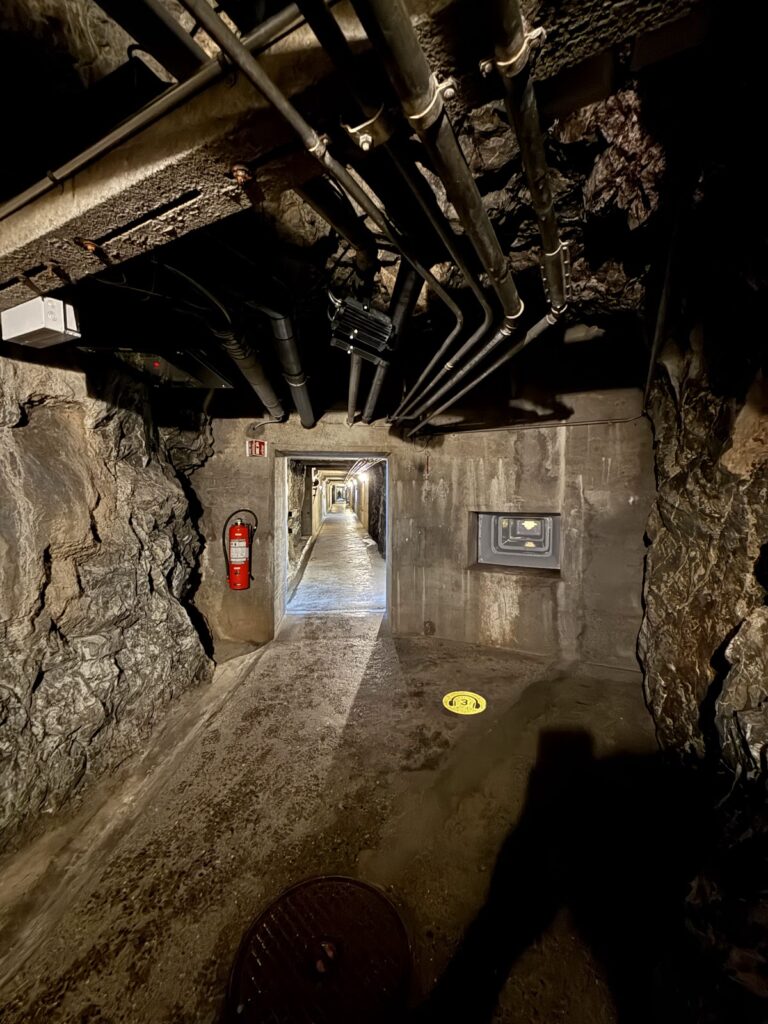

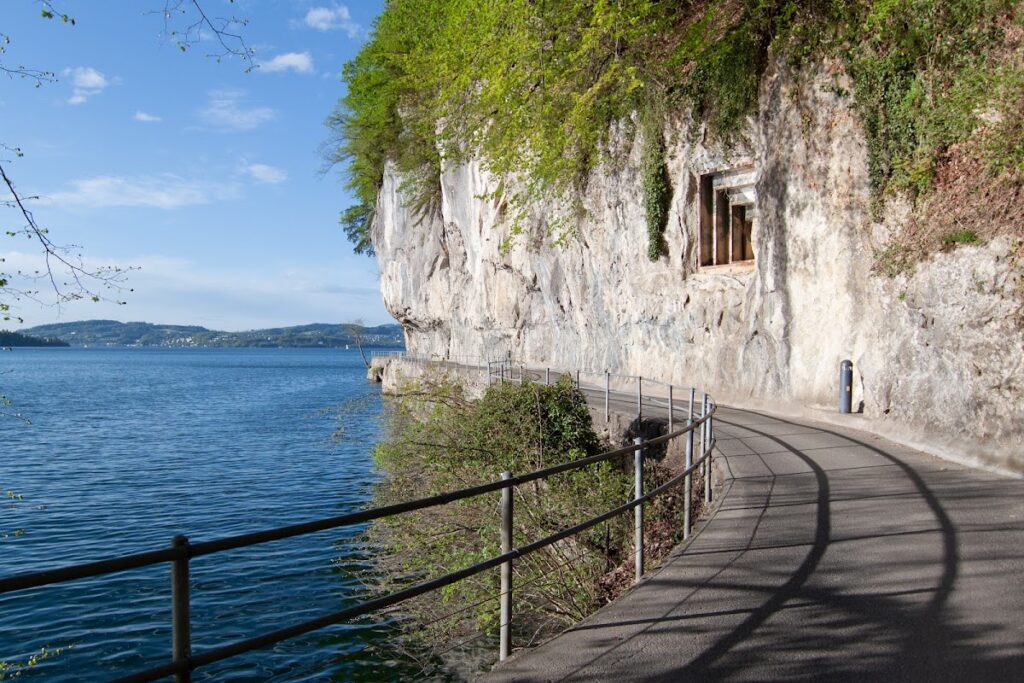

Festung Fürigen stands at 436 metres above sea level at the western foot of the Bürgenstock, in the Fürigen district of Stansstad, beside the road to Kehrsiten on the shore of Lake Lucerne. Its principal structure is a tunnel cut approximately 200 metres into the rock. The underground installation combines combat positions with storage, accommodation, medical, administrative, and service rooms.
Underground installation
Combat positions and artillery
Two combat positions housed the fort’s main artillery. Their armament consisted of two 7.5-centimetre BK 39 fortress guns, developed in 1939. The guns were directed toward Stansstad and Hergiswil and could fire between 10 and 15 rounds per minute. Their range was 10.5 kilometres with steel shells and up to 12 kilometres with pointed shells.
Three MG 11 fortress machine guns provided additional firepower. They were later replaced by air-cooled MG 51 guns. A white-light searchlight was also installed and later replaced by an infrared searchlight. Close defense included three permanently installed fortress machine guns aimed toward the firing ports and the entrance, together with several mobile weapons. Barbed-wire obstacles strengthened the exterior defenses.
Living and service rooms
The tunnel also contained an ammunition magazine, kitchen, hospital, offices, and sleeping quarters. Food reserves were sufficient for 30 days, while a pump maintained the water supply from Lake Lucerne. Approximately 80 soldiers shared 52 sleeping berths on a rotating basis, and non-commissioned officers had an additional 11 berths.
The officers’ accommodation consisted of an office, quarters for the commander, and a sleeping room for two officers. The arrangement reflects the fort’s role as a self-contained military installation, with essential working, medical, storage, and living spaces placed within the protected rock-cut structure.
Weapons handling and outer defenses
Gun crews and firing control
Each gun crew had defined tasks. A gun commander received orders from the firing commander or the battery fire-control post and relayed them to the crew. A gun layer aimed the weapon, assisted by an internal observer. A loader and a breech operator handled the firing process, while up to three ammunition carriers supplied the gun.
Road demolition installations
Two permanent demolition installations were concealed beneath the Kehrsiten road. These pre-prepared explosive charges were built into the road so that they could be detonated during a military emergency, making the approach to the fort impassable.
Associated defensive works
Festung Fürigen belonged to a larger network rather than standing alone. Associated installations in the Stansstad defensive position included Artillery Work Kilchlidossen A 2261, Infantry Work Lopper A 2275, Infantry Work Acheregg A 2415, the Mülimatt and Rotzwinkel positions, Infantry Bunker Müli A 2425 at Hergiswil, the Sommerweid demolition installation, and the Garnhänki ASU installation. Together, these works formed the fortified system that controlled the approaches around the Stansstad bottleneck.
